PSG4.0-66H

Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

PSG4.0-66H

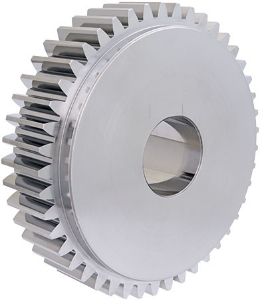

4.0 Module Case Hardened 805M20 (58HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn4
Pressure Angle20°
No. of Teeth [z]66
Torque T₂ [Nm] n1 100 r/min2337
Ref. Diameter [d]264
Tip Diameter [da]272
Bore Diameter [di] H772
Hub Diameter [BD]234
Backlash (mm) jt.i (min)0.093
Backlash (mm) jt.e (max)0.231
Inertia [I] kgm²1.71 x 10-1
Mass [kg]18.856

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn4
Pressure Angle20°
No. of Teeth [z]66
Torque T₂ [Nm] n1 100 r/min2337
Ref. Diameter [d]264
Tip Diameter [da]272
Bore Diameter [di] H772
Hub Diameter [BD]234
Backlash (mm) jt.i (min)0.093
Backlash (mm) jt.e (max)0.231
Inertia [I] kgm²1.71 x 10-1
Mass [kg]18.856
