PSG6.0-22H

Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

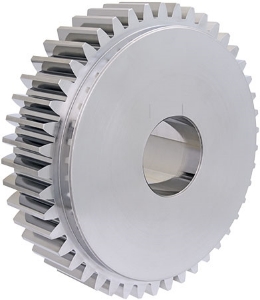

PSG6.0-22H

6.0 Module Case Hardened 805M20 (58HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn6
Pressure Angle20°
No. of Teeth [z]22
Torque T₂ [Nm] n1 100 r/min1509
Ref. Diameter [d]132
Tip Diameter [da]144
Bore Diameter [di] H730
Hub Diameter [BD]100
Backlash (mm) jt.i (min)0.097
Backlash (mm) jt.e (max)0.227
Inertia [I] kgm²1.50 x 10-2
Mass [kg]6.595

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn6
Pressure Angle20°
No. of Teeth [z]22
Torque T₂ [Nm] n1 100 r/min1509
Ref. Diameter [d]132
Tip Diameter [da]144
Bore Diameter [di] H730
Hub Diameter [BD]100
Backlash (mm) jt.i (min)0.097
Backlash (mm) jt.e (max)0.227
Inertia [I] kgm²1.50 x 10-2
Mass [kg]6.595
