PSG6.0-68H

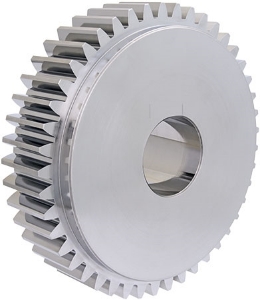

Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

PSG6.0-68H

6.0 Module Case Hardened 805M20 (58HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer Case Hardened Steel Spur Gears from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn6
Pressure Angle20°
No. of Teeth [z]68
Torque T₂ [Nm] n1 100 r/min8128
Ref. Diameter [d]408
Tip Diameter [da]420
Bore Diameter [di] H7120
Hub Diameter [BD]372
Backlash (mm) jt.i (min)0.127
Backlash (mm) jt.e (max)0.293
Inertia [I] kgm²1.41
Mass [kg]63.511

Product specifications

Material805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn6
Pressure Angle20°
No. of Teeth [z]68
Torque T₂ [Nm] n1 100 r/min8128
Ref. Diameter [d]408
Tip Diameter [da]420
Bore Diameter [di] H7120
Hub Diameter [BD]372
Backlash (mm) jt.i (min)0.127
Backlash (mm) jt.e (max)0.293
Inertia [I] kgm²1.41
Mass [kg]63.511
