PSG8.0-35

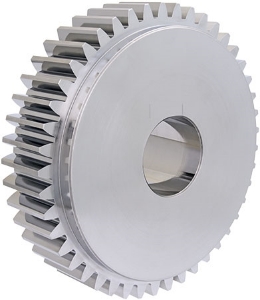

Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

PSG8.0-35

8.0 Module Steel 817M40T (28HRC) Precision Spur Gears 20° PA Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer Spur Gears Precision from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn8
Pressure Angle20°
No. of Teeth [z]35
Torque T₂ [Nm] n1 100 r/min1896
Ref. Diameter [d]280
Tip Diameter [da]296
Bore Diameter [di] H772
Hub Diameter [BD]236
Backlash (mm) jt.i (min)0.093
Backlash (mm) jt.e (max)0.231
Inertia [I] kgm²4.00 x 10-1
Mass [kg]38.836

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeSpur
Normal Module mn8
Pressure Angle20°
No. of Teeth [z]35
Torque T₂ [Nm] n1 100 r/min1896
Ref. Diameter [d]280
Tip Diameter [da]296
Bore Diameter [di] H772
Hub Diameter [BD]236
Backlash (mm) jt.i (min)0.093
Backlash (mm) jt.e (max)0.231
Inertia [I] kgm²4.00 x 10-1
Mass [kg]38.836
