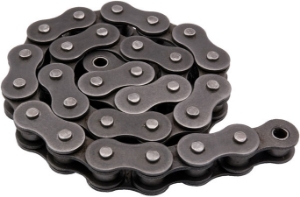

SRC-44.45

Ondrives Precision Gears and Gearboxes Part number SRC-44.45

SRC-44.45

Simplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Ondrives Precision Gears and Gearboxes Part number SRC-44.45 Ondrives Precision Gears and Gearboxes Part number SRC-44.45

Product specifications

MaterialSteel DIN 8187
ISO No.28B-1
Pitch/Lead44.45
Dimension [b1]30.99
Dimension [b2]46.5
Dimension [d1]15.9
Dimension [d3]27.94
Dimension [F1]65.1
Dimension [F2]72.5
Dimension [h]37
Dimension [s1]7
Dimension [s2]6
Bearing Area [f cm²]7.39
Breaking Load [FB N]200000
Chain Weight [q kg/m]8.3

Product specifications

MaterialSteel DIN 8187
ISO No.28B-1
Pitch/Lead44.45
Dimension [b1]30.99
Dimension [b2]46.5
Dimension [d1]15.9
Dimension [d3]27.94
Dimension [F1]65.1
Dimension [F2]72.5
Dimension [h]37
Dimension [s1]7
Dimension [s2]6
Bearing Area [f cm²]7.39
Breaking Load [FB N]200000
Chain Weight [q kg/m]8.3
