SRC-6

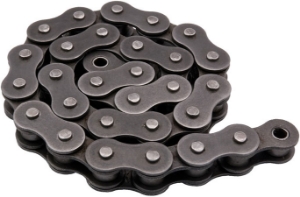

Ondrives Precision Gears and Gearboxes Part number SRC-6

SRC-6

Simplex Steel Sprocket Chains to DIN standard 8187-1, Corresponding to ISO 606
Ondrives Precision Gears and Gearboxes Part number SRC-6 Ondrives Precision Gears and Gearboxes Part number SRC-6

Product specifications

MaterialSteel DIN 8187
ISO No.04
Pitch/Lead6
Dimension [b1]2.8
Dimension [b2]4.1
Dimension [d1]1.85
Dimension [d3]4
Dimension [F1]7.4
Dimension [F2]10.3
Dimension [h]5
Dimension [s1]0.6
Dimension [s2]0.60
Bearing Area [f cm²]0.08
Breaking Load [FB N]3000
Chain Weight [q kg/m]0.12
Sprocket or ChainChain

Product specifications

MaterialSteel DIN 8187
ISO No.04
Pitch/Lead6
Dimension [b1]2.8
Dimension [b2]4.1
Dimension [d1]1.85
Dimension [d3]4
Dimension [F1]7.4
Dimension [F2]10.3
Dimension [h]5
Dimension [s1]0.6
Dimension [s2]0.60
Bearing Area [f cm²]0.08
Breaking Load [FB N]3000
Chain Weight [q kg/m]0.12
Sprocket or ChainChain
