FU04SS

Ondrives Precision Gears and Gearboxes Part number FU04SS

FU04SS

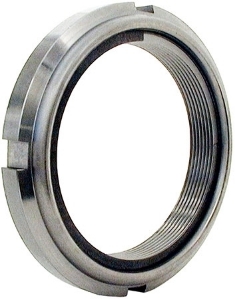

Steel Bearing Locknut, M20
Ondrives Precision Gears and Gearboxes Part number FU04SS Ondrives Precision Gears and Gearboxes Part number FU04SS Ondrives Precision Gears and Gearboxes Part number FU04SS

Product specifications

Thread [M x P]M20 x 1
Diameter [D]32 +0 / -0.5
Diameter [D1]26 +0 / -0.5
Dimension [k] [H]7.7 ±0.5
Dimension [K]6
Dimension [W]28.4 +0 / -0.5
Dimension [T]1.8
Dimension [S]4 ±0.2
Prevailing Torque [Nm]4.7
Proof Load [kN]29.02
Max. Tightening Torque Nm77.8

Product specifications

Thread [M x P]M20 x 1
Diameter [D]32 +0 / -0.5
Diameter [D1]26 +0 / -0.5
Dimension [k] [H]7.7 ±0.5
Dimension [K]6
Dimension [W]28.4 +0 / -0.5
Dimension [T]1.8
Dimension [S]4 ±0.2
Prevailing Torque [Nm]4.7
Proof Load [kN]29.02
Max. Tightening Torque Nm77.8
