FU09SS

Ondrives Precision Gears and Gearboxes Part number FU09SS

FU09SS

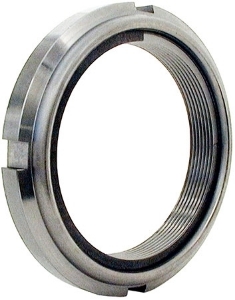

Steel Bearing Locknut, M45
Ondrives Precision Gears and Gearboxes Part number FU09SS Ondrives Precision Gears and Gearboxes Part number FU09SS Ondrives Precision Gears and Gearboxes Part number FU09SS

Product specifications

Thread [M x P]M45 x 1.5
Diameter [D]65 +0 / -0.5
Diameter [D1]56 +0 / -0.5
Dimension [k] [H]12.5 ±1
Dimension [K]10
Dimension [W]60 +0 / -0.5
Dimension [T]2.5
Dimension [S]6 ±0.2
Prevailing Torque [Nm]23.5
Proof Load [kN]109.72
Max. Tightening Torque Nm645.6

Product specifications

Thread [M x P]M45 x 1.5
Diameter [D]65 +0 / -0.5
Diameter [D1]56 +0 / -0.5
Dimension [k] [H]12.5 ±1
Dimension [K]10
Dimension [W]60 +0 / -0.5
Dimension [T]2.5
Dimension [S]6 ±0.2
Prevailing Torque [Nm]23.5
Proof Load [kN]109.72
Max. Tightening Torque Nm645.6
