FU11SS

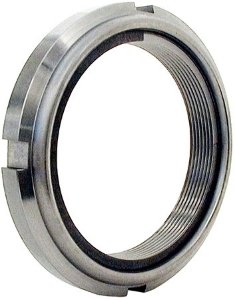

Ondrives Precision Gears and Gearboxes Part number FU11SS

FU11SS

Steel Bearing Locknut, M55
Ondrives Precision Gears and Gearboxes Part number FU11SS Ondrives Precision Gears and Gearboxes Part number FU11SS Ondrives Precision Gears and Gearboxes Part number FU11SS

Product specifications

Thread [M x P]M55 x 2
Diameter [D]75 +0 / -0.5
Diameter [D1]67 +0 / -0.5
Dimension [k] [H]13.5 ±1
Dimension [K]11
Dimension [W]69 +0 / -0.5
Dimension [T]3
Dimension [S]7 ±0.2
Prevailing Torque [Nm]35.3
Proof Load [kN]145.14
Max. Tightening Torque Nm1041.1

Product specifications

Thread [M x P]M55 x 2
Diameter [D]75 +0 / -0.5
Diameter [D1]67 +0 / -0.5
Dimension [k] [H]13.5 ±1
Dimension [K]11
Dimension [W]69 +0 / -0.5
Dimension [T]3
Dimension [S]7 ±0.2
Prevailing Torque [Nm]35.3
Proof Load [kN]145.14
Max. Tightening Torque Nm1041.1
