FU15SS

Ondrives Precision Gears and Gearboxes Part number FU15SS

FU15SS

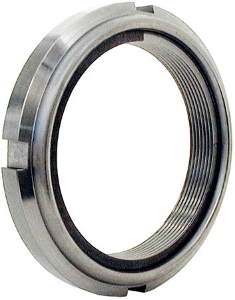

Steel Bearing Locknut, M75
Ondrives Precision Gears and Gearboxes Part number FU15SS Ondrives Precision Gears and Gearboxes Part number FU15SS Ondrives Precision Gears and Gearboxes Part number FU15SS

Product specifications

Thread [M x P]M75 x 2
Diameter [D]98 +0 / -0.5
Diameter [D1]90 +0 / -0.5
Dimension [k] [H]15.8 ±1.5
Dimension [K]13
Dimension [W]91 +0 / -0.5
Dimension [T]3.5
Dimension [S]8 ±0.2
Prevailing Torque [Nm]66.6
Proof Load [kN]237.5
Max. Tightening Torque Nm2310.9

Product specifications

Thread [M x P]M75 x 2
Diameter [D]98 +0 / -0.5
Diameter [D1]90 +0 / -0.5
Dimension [k] [H]15.8 ±1.5
Dimension [K]13
Dimension [W]91 +0 / -0.5
Dimension [T]3.5
Dimension [S]8 ±0.2
Prevailing Torque [Nm]66.6
Proof Load [kN]237.5
Max. Tightening Torque Nm2310.9
