FU17SS

Ondrives Precision Gears and Gearboxes Part number FU17SS

FU17SS

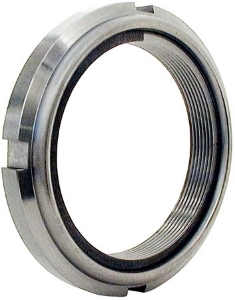

Steel Bearing Locknut, M85
Ondrives Precision Gears and Gearboxes Part number FU17SS Ondrives Precision Gears and Gearboxes Part number FU17SS Ondrives Precision Gears and Gearboxes Part number FU17SS

Product specifications

Thread [M x P]M85 x 2
Diameter [D]110 +0 / -0.5
Diameter [D1]102 +0 / -0.75
Dimension [k] [H]19.2 ±1.5
Dimension [K]16
Dimension [W]103 +0 / -0.5
Dimension [T]3.5
Dimension [S]8 ±0.2
Prevailing Torque [Nm]76.4
Proof Load [kN]336.46
Max. Tightening Torque Nm3679.8

Product specifications

Thread [M x P]M85 x 2
Diameter [D]110 +0 / -0.5
Diameter [D1]102 +0 / -0.75
Dimension [k] [H]19.2 ±1.5
Dimension [K]16
Dimension [W]103 +0 / -0.5
Dimension [T]3.5
Dimension [S]8 ±0.2
Prevailing Torque [Nm]76.4
Proof Load [kN]336.46
Max. Tightening Torque Nm3679.8
