FU18SS

Ondrives Precision Gears and Gearboxes Part number FU18SS

FU18SS

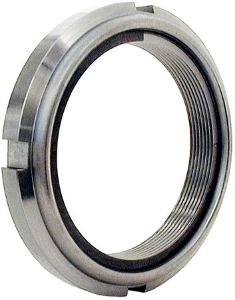

Steel Bearing Locknut, M90
Ondrives Precision Gears and Gearboxes Part number FU18SS Ondrives Precision Gears and Gearboxes Part number FU18SS Ondrives Precision Gears and Gearboxes Part number FU18SS

Product specifications

Thread [M x P]M90 x 2
Diameter [D]120 +0 / -0.5
Diameter [D1]108 +0 / -0.75
Dimension [k] [H]20.3 ±1.5
Dimension [K]16
Dimension [W]112 +0 / -0.5
Dimension [T]4
Dimension [S]10 ±0.3
Prevailing Torque [Nm]83.3
Proof Load [kN]356.25
Max. Tightening Torque Nm4123.1

Product specifications

Thread [M x P]M90 x 2
Diameter [D]120 +0 / -0.5
Diameter [D1]108 +0 / -0.75
Dimension [k] [H]20.3 ±1.5
Dimension [K]16
Dimension [W]112 +0 / -0.5
Dimension [T]4
Dimension [S]10 ±0.3
Prevailing Torque [Nm]83.3
Proof Load [kN]356.25
Max. Tightening Torque Nm4123.1
