FU19SS

Ondrives Precision Gears and Gearboxes Part number FU19SS

FU19SS

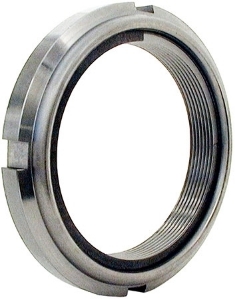

Steel Bearing Locknut, M95
Ondrives Precision Gears and Gearboxes Part number FU19SS Ondrives Precision Gears and Gearboxes Part number FU19SS Ondrives Precision Gears and Gearboxes Part number FU19SS

Product specifications

Thread [M x P]M95 x 2
Diameter [D]125 +0 / -0.5
Diameter [D1]113 +0 / -0.75
Dimension [k] [H]21.3 ±1.5
Dimension [K]17
Dimension [W]117 +0 / -0.5
Dimension [T]4
Dimension [S]10 ±0.3
Prevailing Torque [Nm]88.2
Proof Load [kN]401.11
Max. Tightening Torque Nm4889.4

Product specifications

Thread [M x P]M95 x 2
Diameter [D]125 +0 / -0.5
Diameter [D1]113 +0 / -0.75
Dimension [k] [H]21.3 ±1.5
Dimension [K]17
Dimension [W]117 +0 / -0.5
Dimension [T]4
Dimension [S]10 ±0.3
Prevailing Torque [Nm]88.2
Proof Load [kN]401.11
Max. Tightening Torque Nm4889.4
