CF5-FB
CF5-FB

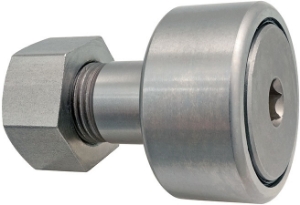

Stainless Steel Cam Follower with Cylindrical Outer Ring and Stainless Steel Shields, 5mm Stud Dia, 13mm Bearing Dia.
Product specifications
Stud Dia. [d]
5
Thread [d]
M5 x 0.8
Diameter [D]
13
Dimension [k] [H]
10
Dimension [L]
23
Dimension [L1]
7.5
Dimension [b]
13
Dimension [C]
9
Dimension [C1]
0.5
Dimension [r] Min.
0.3
Dimension [s]
3
Min. Mounting Dimension [f]
9.3
Max. Tightening Torque Nm
1.6
Basic Dynamic Load Rating [N]
1930
Basic Static Load Rating [N]
1730
Max. Allowable Static Load [N]
1260
Track Load Capacity [N]
2210
Mass (g)
10.3
Specifications
Overview
Product specifications
Stud Dia. [d]
5
Thread [d]
M5 x 0.8
Diameter [D]
13
Dimension [k] [H]
10
Dimension [L]
23
Dimension [L1]
7.5
Dimension [b]
13
Dimension [C]
9
Dimension [C1]
0.5
Dimension [r] Min.
0.3
Dimension [s]
3
Min. Mounting Dimension [f]
9.3
Max. Tightening Torque Nm
1.6
Basic Dynamic Load Rating [N]
1930
Basic Static Load Rating [N]
1730
Max. Allowable Static Load [N]
1260
Track Load Capacity [N]
2210
Mass (g)
10.3
