CF8-FBR

Ondrives Precision Gears and Gearboxes Part number CF8-FBR

CF8-FBR

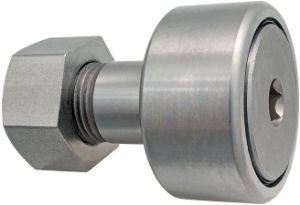

Stainless Steel Cam Follower with Crowned Outer Ring and Stainless Steel Shields, 8mm Stud Dia, 19mm Bearing Dia.
Ondrives Precision Gears and Gearboxes Part number CF8-FBR Ondrives Precision Gears and Gearboxes Part number CF8-FBR Ondrives Precision Gears and Gearboxes Part number CF8-FBR Ondrives Precision Gears and Gearboxes Part number CF8-FBR Ondrives Precision Gears and Gearboxes Part number CF8-FBR

Product specifications

Stud Dia. [d]8
Thread [d]M8 x 1.25
Diameter [D]19
Dimension [k] [H]12.2 (Max)
Dimension [L]32.2 (Max.)
Dimension [L1]10
Dimension [b]20
Dimension [C]11
Dimension [C1]0.6
Dimension [r] Min.0.3
Dimension [s]4
Min. Mounting Dimension [f]13
Max. Tightening Torque Nm6.5
Basic Dynamic Load Rating [N]3400
Basic Static Load Rating [N]3790
Max. Allowable Static Load [N]4620
Track Load Capacity [N]1330
Mass (g)28.5

Product specifications

Stud Dia. [d]8
Thread [d]M8 x 1.25
Diameter [D]19
Dimension [k] [H]12.2 (Max)
Dimension [L]32.2 (Max.)
Dimension [L1]10
Dimension [b]20
Dimension [C]11
Dimension [C1]0.6
Dimension [r] Min.0.3
Dimension [s]4
Min. Mounting Dimension [f]13
Max. Tightening Torque Nm6.5
Basic Dynamic Load Rating [N]3400
Basic Static Load Rating [N]3790
Max. Allowable Static Load [N]4620
Track Load Capacity [N]1330
Mass (g)28.5
