CF-SFU-10

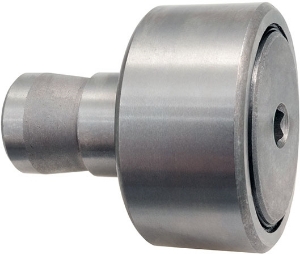

Ondrives Precision Gears and Gearboxes Part number CF-SFU-10

CF-SFU-10

Steel Easy Mounting Cam Follower with Cylindrical Outer Ring and Rubber Seals, 10mm Stud Dia, 22mm Bearing Dia.
Ondrives Precision Gears and Gearboxes Part number CF-SFU-10 Ondrives Precision Gears and Gearboxes Part number CF-SFU-10 Ondrives Precision Gears and Gearboxes Part number CF-SFU-10 Ondrives Precision Gears and Gearboxes Part number CF-SFU-10 Ondrives Precision Gears and Gearboxes Part number CF-SFU-10

Product specifications

Stud Dia. [d]10
Diameter [D]22
Dimension [k] [H]13.2 (Max.)
Dimension [L]33 (Max.)
Dimension [L1]5
Dimension [b]10
Dimension [L3]19.8
Dimension [C]12
Dimension [C1]0.6
Dimension [e]0.5
Dimension [r] Min.0.3
Dimension [s]4
Diameter [D1]10 +0.015/-0.000
Min. Mounting Dimension [f]16
Min. Mounting Dimension [t]20
Dimension [h]10
Basic Dynamic Load Rating [N]5430
Basic Static Load Rating [N]6890
Max. Allowable Static Load [N]6890
Track Load Capacity [N]4680
Mass (g)44

Product specifications

Stud Dia. [d]10
Diameter [D]22
Dimension [k] [H]13.2 (Max.)
Dimension [L]33 (Max.)
Dimension [L1]5
Dimension [b]10
Dimension [L3]19.8
Dimension [C]12
Dimension [C1]0.6
Dimension [e]0.5
Dimension [r] Min.0.3
Dimension [s]4
Diameter [D1]10 +0.015/-0.000
Min. Mounting Dimension [f]16
Min. Mounting Dimension [t]20
Dimension [h]10
Basic Dynamic Load Rating [N]5430
Basic Static Load Rating [N]6890
Max. Allowable Static Load [N]6890
Track Load Capacity [N]4680
Mass (g)44
