CF-SFU-18

Ondrives Precision Gears and Gearboxes Part number CF-SFU-18

CF-SFU-18

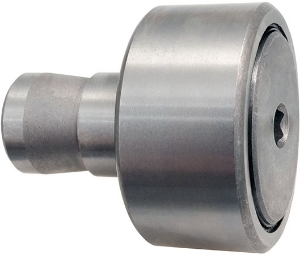

Steel Easy Mounting Cam Follower with Cylindrical Outer Ring and Rubber Seals, 18mm Stud Dia, 40mm Bearing Dia.
Ondrives Precision Gears and Gearboxes Part number CF-SFU-18 Ondrives Precision Gears and Gearboxes Part number CF-SFU-18 Ondrives Precision Gears and Gearboxes Part number CF-SFU-18 Ondrives Precision Gears and Gearboxes Part number CF-SFU-18 Ondrives Precision Gears and Gearboxes Part number CF-SFU-18

Product specifications

Stud Dia. [d]18
Diameter [D]40
Dimension [k] [H]21.6 (Max.)
Dimension [L]46.5 (Max.)
Dimension [L1]10
Dimension [b]10
Dimension [L3]24.9
Dimension [C]20
Dimension [C1]0.8
Dimension [e]1
Dimension [r] Min.1
Dimension [s]8
Diameter [D1]18 +0.018/-0.000
Min. Mounting Dimension [f]29
Min. Mounting Dimension [t]25
Dimension [h]15
Basic Dynamic Load Rating [N]14800
Basic Static Load Rating [N]25200
Max. Allowable Static Load [N]25200
Track Load Capacity [N]14500
Mass (g)235

Product specifications

Stud Dia. [d]18
Diameter [D]40
Dimension [k] [H]21.6 (Max.)
Dimension [L]46.5 (Max.)
Dimension [L1]10
Dimension [b]10
Dimension [L3]24.9
Dimension [C]20
Dimension [C1]0.8
Dimension [e]1
Dimension [r] Min.1
Dimension [s]8
Diameter [D1]18 +0.018/-0.000
Min. Mounting Dimension [f]29
Min. Mounting Dimension [t]25
Dimension [h]15
Basic Dynamic Load Rating [N]14800
Basic Static Load Rating [N]25200
Max. Allowable Static Load [N]25200
Track Load Capacity [N]14500
Mass (g)235
