CF-SFU-20-1

Ondrives Precision Gears and Gearboxes Part number CF-SFU-20-1

CF-SFU-20-1

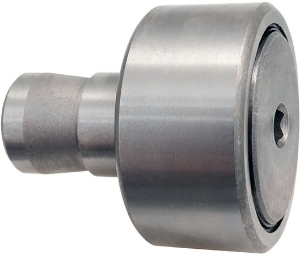

Steel Easy Mounting Cam Follower with Cylindrical Outer Ring and Rubber Seals, 20mm Stud Dia, 47mm Bearing Dia.
Ondrives Precision Gears and Gearboxes Part number CF-SFU-20-1 Ondrives Precision Gears and Gearboxes Part number CF-SFU-20-1 Ondrives Precision Gears and Gearboxes Part number CF-SFU-20-1 Ondrives Precision Gears and Gearboxes Part number CF-SFU-20-1 Ondrives Precision Gears and Gearboxes Part number CF-SFU-20-1

Product specifications

Stud Dia. [d]20
Diameter [D]47
Dimension [k] [H]25.6 (Max.)
Dimension [L]50.5 (Max.)
Dimension [L1]10
Dimension [b]10
Dimension [L3]24.9
Dimension [C]24
Dimension [C1]0.8
Dimension [e]1
Dimension [r] Min.1
Dimension [s]8
Diameter [D1]20 +0.021/-0.000
Min. Mounting Dimension [f]34
Min. Mounting Dimension [t]25
Dimension [h]15
Basic Dynamic Load Rating [N]20700
Basic Static Load Rating [N]34600
Max. Allowable Static Load [N]34600
Track Load Capacity [N]21000
Mass (g)360

Product specifications

Stud Dia. [d]20
Diameter [D]47
Dimension [k] [H]25.6 (Max.)
Dimension [L]50.5 (Max.)
Dimension [L1]10
Dimension [b]10
Dimension [L3]24.9
Dimension [C]24
Dimension [C1]0.8
Dimension [e]1
Dimension [r] Min.1
Dimension [s]8
Diameter [D1]20 +0.021/-0.000
Min. Mounting Dimension [f]34
Min. Mounting Dimension [t]25
Dimension [h]15
Basic Dynamic Load Rating [N]20700
Basic Static Load Rating [N]34600
Max. Allowable Static Load [N]34600
Track Load Capacity [N]21000
Mass (g)360
