CSS-12

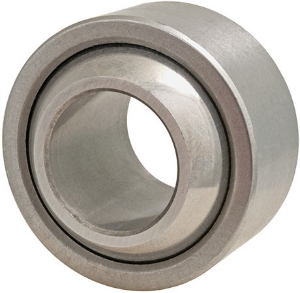

Ondrives Precision Gears and Gearboxes Part number CSS-12

CSS-12

Steel Spherical Bearing, 12mm Bore.
Ondrives Precision Gears and Gearboxes Part number CSS-12 Ondrives Precision Gears and Gearboxes Part number CSS-12

Product specifications

Diameter [d] H712
Diameter [A] h626
Dimension [W]16 +0 / -0.12
Dimension [k] [H]12 +0 / -0.24
Diameter [F]15.4
Ball Diameter [B]22.225
Radius [R]0.3
Max. Tilt Angle13°
Max. Static Load [kN]53
Mass (g)40

Product specifications

Diameter [d] H712
Diameter [A] h626
Dimension [W]16 +0 / -0.12
Dimension [k] [H]12 +0 / -0.24
Diameter [F]15.4
Ball Diameter [B]22.225
Radius [R]0.3
Max. Tilt Angle13°
Max. Static Load [kN]53
Mass (g)40
