CSS-35

Ondrives Precision Gears and Gearboxes Part number CSS-35

CSS-35

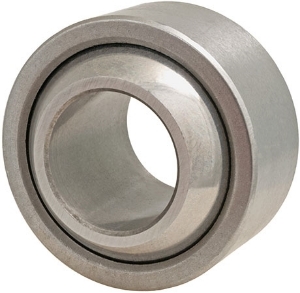

Steel Spherical Bearing, 35mm Bore.
Ondrives Precision Gears and Gearboxes Part number CSS-35 Ondrives Precision Gears and Gearboxes Part number CSS-35

Product specifications

Diameter [d] H735
Dimension [W]43 +0 / -0.12
Dimension [k] [H]28
Diameter [A] h662
Diameter [F]37.7
Ball Diameter [B]57.15
Radius [R]0.6
Max. Tilt Angle19°
Max. Static Load [kN]320
Mass (g)490

Product specifications

Diameter [d] H735
Dimension [W]43 +0 / -0.12
Dimension [k] [H]28
Diameter [A] h662
Diameter [F]37.7
Ball Diameter [B]57.15
Radius [R]0.6
Max. Tilt Angle19°
Max. Static Load [kN]320
Mass (g)490
