TCS12.7/7.75-16

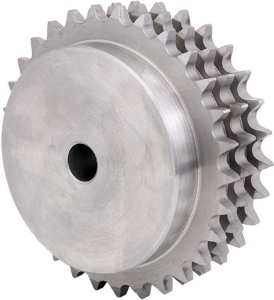

Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-16

TCS12.7/7.75-16

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1/2" (12.7mm) Pitch (ISO 08B-3), 8.51mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-16 Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-16

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]16
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]69.9
Ref. Diameter [dp]65.1
Hub Diameter [BD]50
Bore Diameter [di]16
Sprocket Width [E]50
Mass [kg]0.85

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]16
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]69.9
Ref. Diameter [dp]65.1
Hub Diameter [BD]50
Bore Diameter [di]16
Sprocket Width [E]50
Mass [kg]0.85
