TCS12.7/7.75-50

Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-50

TCS12.7/7.75-50

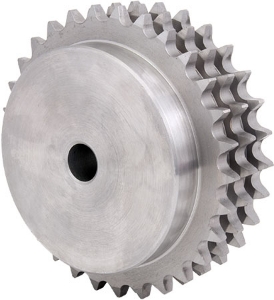

Bossed Cast Iron GG20 Triplex Sprockets, 1/2" (12.7mm) Pitch (ISO 08B-3), 8.51mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-50 Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-50

Product specifications

MaterialCast Iron GG20
No. of Teeth [z]50
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]208.8
Ref. Diameter [dp]202.26
Hub Diameter [BD]120
Bore Diameter [di]25
Sprocket Width [E]68
Mass kg10.74

Product specifications

MaterialCast Iron GG20
No. of Teeth [z]50
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]208.8
Ref. Diameter [dp]202.26
Hub Diameter [BD]120
Bore Diameter [di]25
Sprocket Width [E]68
Mass kg10.74
