TCS12.7/7.75-9

Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-9

TCS12.7/7.75-9

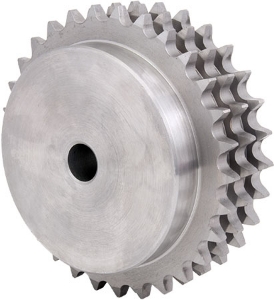

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1/2" (12.7mm) Pitch (ISO 08B-3), 8.51mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-9 Ondrives Precision Gears and Gearboxes Part number TCS12.7/7.75-9

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]9
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]42
Ref. Diameter [dp]37.13
Hub Diameter [BD]24
Bore Diameter [di]12
Sprocket Width [E]46
Mass [kg]0.18

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]9
ISO No.08B-3
Pitch/Lead12.7
Tip Diameter [de]42
Ref. Diameter [dp]37.13
Hub Diameter [BD]24
Bore Diameter [di]12
Sprocket Width [E]46
Mass [kg]0.18
