TCS15.88-35

Ondrives Precision Gears and Gearboxes Part number TCS15.88-35

TCS15.88-35

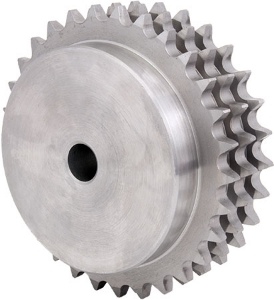

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 5/8" (15.875mm) Pitch (ISO 10B-3), 10.16mm Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS15.88-35 Ondrives Precision Gears and Gearboxes Part number TCS15.88-35

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]35
ISO No.10B-3
Pitch/Lead15.875
Tip Diameter [de]184
Ref. Diameter [dp]177.1
Hub Diameter [BD]120
Bore Diameter [di]20
Sprocket Width [E]60
Mass kg8.74

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]35
ISO No.10B-3
Pitch/Lead15.875
Tip Diameter [de]184
Ref. Diameter [dp]177.1
Hub Diameter [BD]120
Bore Diameter [di]20
Sprocket Width [E]60
Mass kg8.74
