TCS25.4-11

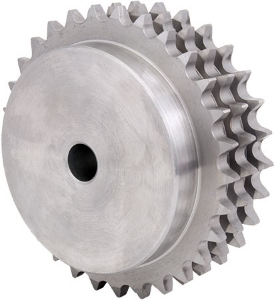

Ondrives Precision Gears and Gearboxes Part number TCS25.4-11

TCS25.4-11

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-3), 5/8" (15.875mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS25.4-11 Ondrives Precision Gears and Gearboxes Part number TCS25.4-11

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]11
ISO No.16B-3
Pitch/Lead25.4
Tip Diameter [de]101.7
Ref. Diameter [dp]90.14
Hub Diameter [BD]64
Bore Diameter [di]25
Sprocket Width [E]100
Mass [kg]2.86

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]11
ISO No.16B-3
Pitch/Lead25.4
Tip Diameter [de]101.7
Ref. Diameter [dp]90.14
Hub Diameter [BD]64
Bore Diameter [di]25
Sprocket Width [E]100
Mass [kg]2.86
