TCS25.4-21

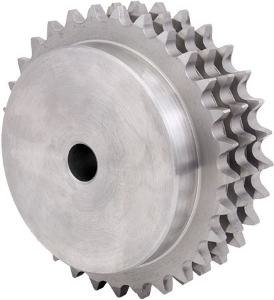

Ondrives Precision Gears and Gearboxes Part number TCS25.4-21

TCS25.4-21

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-3), 5/8" (15.875mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS25.4-21 Ondrives Precision Gears and Gearboxes Part number TCS25.4-21

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]21
ISO No.16B-3
Pitch/Lead25.4
Tip Diameter [de]182
Ref. Diameter [dp]170.43
Hub Diameter [BD]130
Bore Diameter [di]25
Sprocket Width [E]100
Mass kg13.56

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]21
ISO No.16B-3
Pitch/Lead25.4
Tip Diameter [de]182
Ref. Diameter [dp]170.43
Hub Diameter [BD]130
Bore Diameter [di]25
Sprocket Width [E]100
Mass kg13.56
