TCS25.4-22

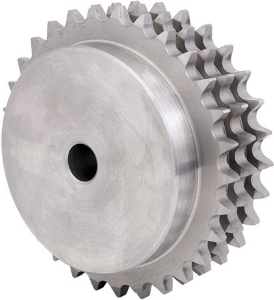

Ondrives Precision Gears and Gearboxes Part number TCS25.4-22

TCS25.4-22

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-3), 5/8" (15.875mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS25.4-22 Ondrives Precision Gears and Gearboxes Part number TCS25.4-22

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]22
ISO No.16B-3
Pitch/Lead25.4
Tip Diameter [de]190.1
Ref. Diameter [dp]178.48
Hub Diameter [BD]130
Bore Diameter [di]25
Sprocket Width [E]100
Mass kg14.82

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]22
ISO No.16B-3
Pitch/Lead25.4
Tip Diameter [de]190.1
Ref. Diameter [dp]178.48
Hub Diameter [BD]130
Bore Diameter [di]25
Sprocket Width [E]100
Mass kg14.82
