TCS25.4-35

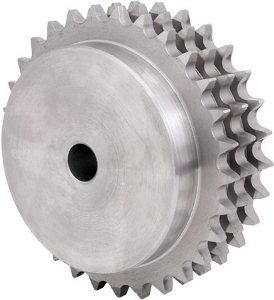

Ondrives Precision Gears and Gearboxes Part number TCS25.4-35

TCS25.4-35

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-3), 5/8" (15.875mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS25.4-35 Ondrives Precision Gears and Gearboxes Part number TCS25.4-35

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]35
ISO No.16B-3
Pitch/Lead25.4
Tip Diameter [de]294.9
Ref. Diameter [dp]283.36
Hub Diameter [BD]140
Bore Diameter [di]30
Sprocket Width [E]100
Mass kg37.23

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]35
ISO No.16B-3
Pitch/Lead25.4
Tip Diameter [de]294.9
Ref. Diameter [dp]283.36
Hub Diameter [BD]140
Bore Diameter [di]30
Sprocket Width [E]100
Mass kg37.23
