TCS25.4-40

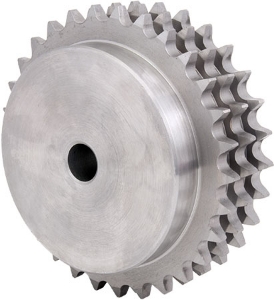

Ondrives Precision Gears and Gearboxes Part number TCS25.4-40

TCS25.4-40

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1" (25.4mm) Pitch (ISO 16B-3), 5/8" (15.875mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS25.4-40 Ondrives Precision Gears and Gearboxes Part number TCS25.4-40

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]40
ISO No.16B-3
Pitch/Lead25.4
Tip Diameter [de]335.3
Ref. Diameter [dp]323.73
Hub Diameter [BD]140
Bore Diameter [di]30
Sprocket Width [E]100
Mass kg48.67

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]40
ISO No.16B-3
Pitch/Lead25.4
Tip Diameter [de]335.3
Ref. Diameter [dp]323.73
Hub Diameter [BD]140
Bore Diameter [di]30
Sprocket Width [E]100
Mass kg48.67
