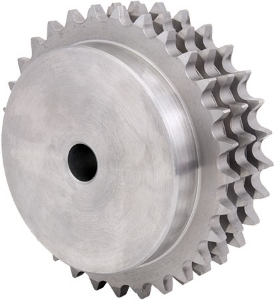

TCS31.75-21

Ondrives Precision Gears and Gearboxes Part number TCS31.75-21

TCS31.75-21

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1 1/4" (31.75mm) Pitch (ISO 20B-3), 3/4" (19.05mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS31.75-21 Ondrives Precision Gears and Gearboxes Part number TCS31.75-21

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]21
ISO No.20B-3
Pitch/Lead31.75
Tip Diameter [de]228
Ref. Diameter [dp]213.04
Hub Diameter [BD]140
Bore Diameter [di]30
Sprocket Width [E]115
Mass kg23.38

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]21
ISO No.20B-3
Pitch/Lead31.75
Tip Diameter [de]228
Ref. Diameter [dp]213.04
Hub Diameter [BD]140
Bore Diameter [di]30
Sprocket Width [E]115
Mass kg23.38
