TCS38.1-19

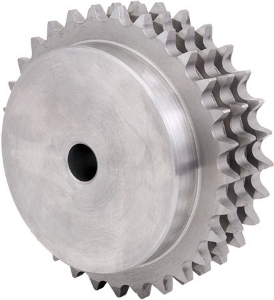

Ondrives Precision Gears and Gearboxes Part number TCS38.1-19

TCS38.1-19

Bossed C43 UNI 7847 Carbon Steel Triplex Sprockets, 1 1/2" (38.1mm) Pitch (ISO 24B-3), 1" (25.4mm) Roller Diameter
Ondrives Precision Gears and Gearboxes Part number TCS38.1-19 Ondrives Precision Gears and Gearboxes Part number TCS38.1-19

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]19
ISO No.24B-3
Pitch/Lead38.1
Tip Diameter [de]245.5
Ref. Diameter [dp]231.49
Hub Diameter [BD]160
Bore Diameter [di]30
Sprocket Width [E]150
Mass kg35.74

Product specifications

MaterialC43 UNI 7847 Carbon Steel
No. of Teeth [z]19
ISO No.24B-3
Pitch/Lead38.1
Tip Diameter [de]245.5
Ref. Diameter [dp]231.49
Hub Diameter [BD]160
Bore Diameter [di]30
Sprocket Width [E]150
Mass kg35.74
