    Wormwheel Inline Offset High Ratio

    Ondrives double reduction wormwheel gearboxes are manufactured to give a compact design with ratios ranging from 25:1 to 900:1 and output torques to 38Nm.

    View as Grid List
    Sort by
    Display per page

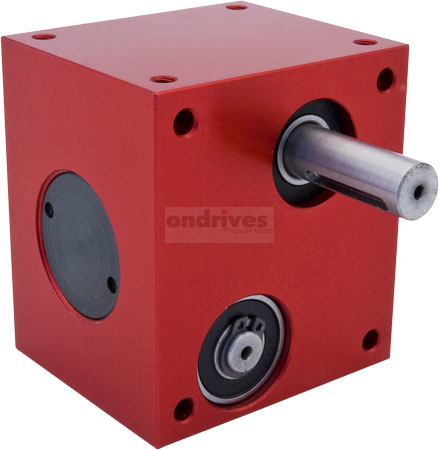

    Ondrives Precision Gears and Gearboxes Part number  PP35-100

    PP35-100

    PP35-100
    £421.94
    Double reduction worm gear reducer, 8mm input shaft, 10mm output shaft, 5Nm output torque, Ratio 100:1
    Ondrives Precision Gears and Gearboxes Part number  PP35-200

    PP35-200

    PP35-200
    £421.94
    Double reduction worm gear reducer, 8mm input shaft, 10mm output shaft, 5Nm output torque, Ratio 200:1
    Ondrives Precision Gears and Gearboxes Part number  PP35-400

    PP35-400

    PP35-400
    £421.94
    Double reduction worm gear reducer, 8mm input shaft, 10mm output shaft, 5Nm output torque, Ratio 400:1

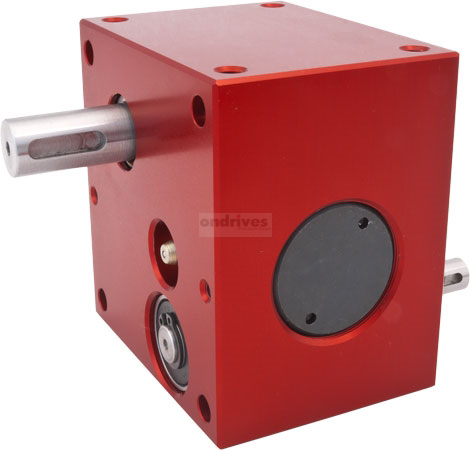

    Ondrives Precision Gears and Gearboxes Part number  PP50-100

    PP50-100

    PP50-100
    £493.77
    Double reduction worm gear reducer, 10mm input shaft, 15mm output shaft, 15Nm output torque, Ratio 100:1
    Ondrives Precision Gears and Gearboxes Part number  PP50-200

    PP50-200

    PP50-200
    £493.77
    Double reduction worm gear reducer, 10mm input shaft, 15mm output shaft, 15Nm output torque, Ratio 200:1
    Ondrives Precision Gears and Gearboxes Part number  PP50-400

    PP50-400

    PP50-400
    £493.77
    Double reduction worm gear reducer, 10mm input shaft, 15mm output shaft, 15Nm output torque, Ratio 400:1
