BL8-XH-1

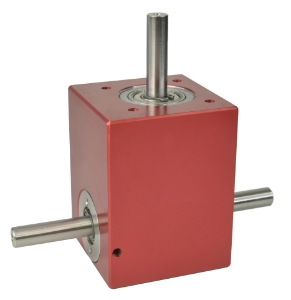

Spiral Bevel Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes

BL8-XH-1

T-shape right angled drive, 8mm shafts, 0.8Nm-2Nm output torque, ratio 1:1. Spiral Bevel Bevels.
Spiral Bevel Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Spiral Bevel Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Spiral Bevel Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Spiral Bevel Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Spiral Bevel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Spiral Bevel gearbox shaft input with bore output made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]1:1
Output Torque T₂n [Nm]1.00
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Dimension [A]50
Dimension [B]65
Mass [kg]0.56
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Gear Ratio [i=]1:1
Output Torque T₂n [Nm]1.00
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Dimension [A]50
Dimension [B]65
Mass [kg]0.56
Lubrication GreaseShell Gadus S5 V42P 2.5
