    Spiral Bevel Gearboxes

    Ondrives manufacture a complete range of BLH spiral bevel gearboxes grease filled fitted with deep groove bearings.
    These reducers are used in a wide varaity of industries where space saving is needed with our slim fit designs as well special designs for those applications where needed.
    Spiral bevel gear sets are able to transmit higher torques with a smoother action than straight bevels teeth. Spiral bevel teeth are able to have a better line of contact with good TCA with Gleason GEMs we are able to design and produce tooth designs to meet appliction requirements.
    Types of industries - aerospace, robotics, semiconductor, medical,  OEM's (Original Equipment Manufacturers), automation, packaging and material handling.
    Units can be supplied modified or bespoke to customer specifications.
    For our higher strength designs taper roller bearings with full ground teeth see our SBC range click here.
    See more on our bevels at :

    Ondrives Spiral Bevels Info

    View as Grid List
    Sort by
    Display per page

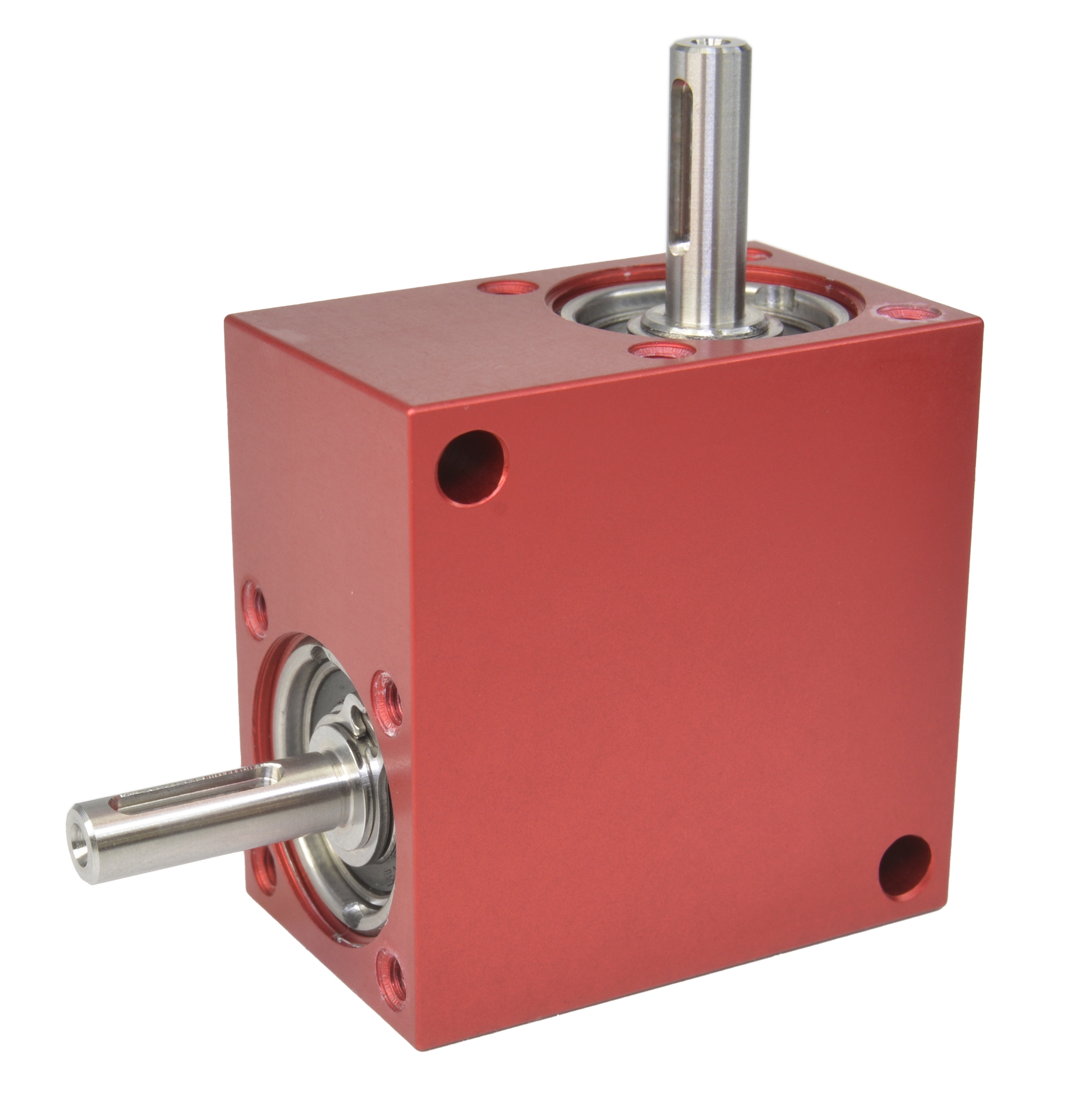

    Spiral Bevel Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes

    BLH20-1

    BLH20-1
    Spiral Bevel Gearbox Right Angle Shaft Input 1 Shaft Output, ≤45' backlash, 5mm shafts, 0.66Nm-1.77Nm output torque, ratio 1:1

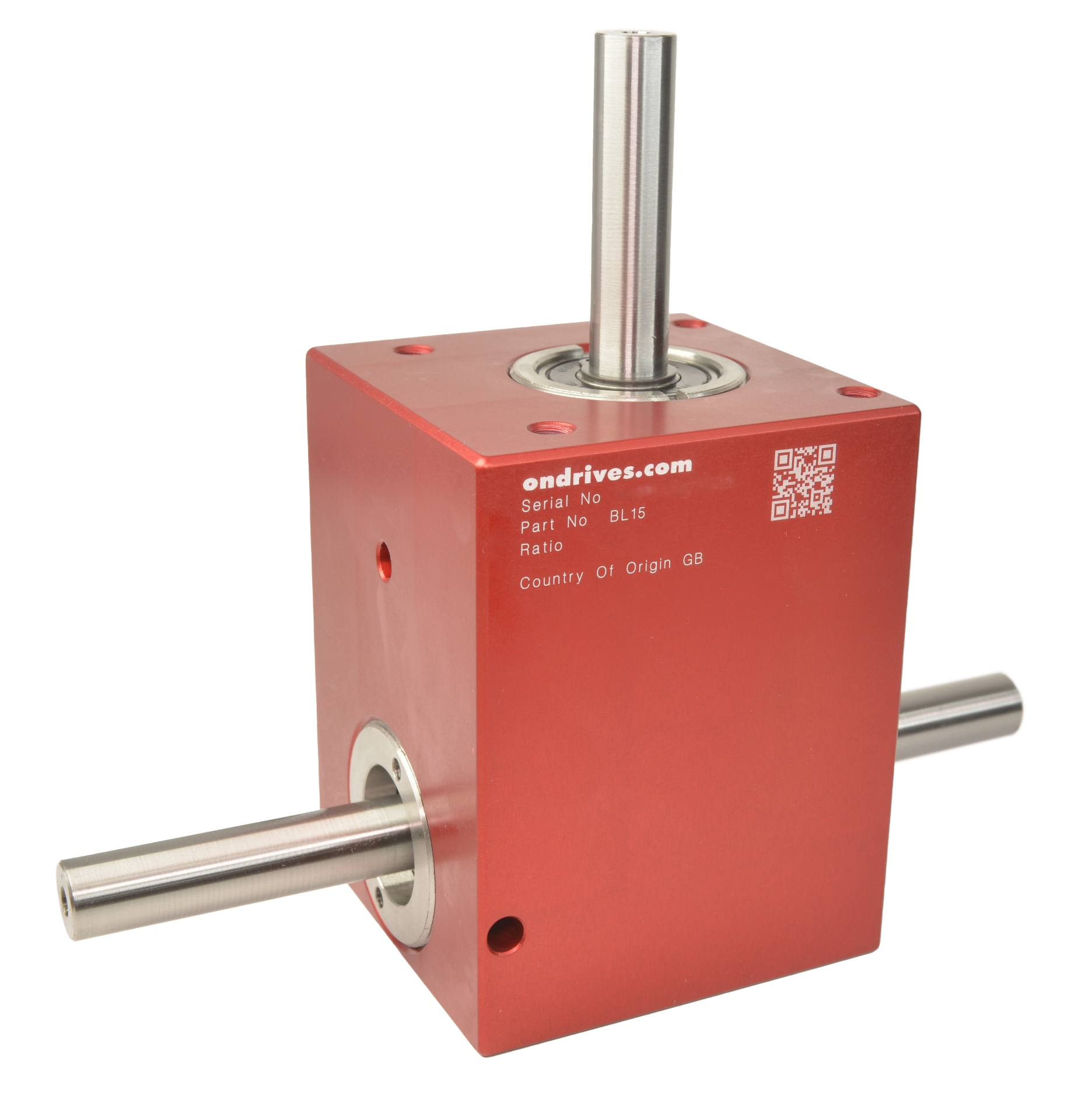

    Ondrives Precision Gears and Gearboxes Part number  BL15-1

    BL15-1

    BL15-1
    T-shape right angled drive, 12mm shafts, 2Nm-5Nm output torque, ratio 1:1. Spiral Bevels.
    Ondrives Precision Gears and Gearboxes Part number  BL15-2

    BL15-2

    BL15-2
    T-shape right angled drive, 12mm shafts, 1.1Nm-2.9Nm output torque, ratio 2:1. Spiral Bevels.
    Ondrives Precision Gears and Gearboxes Part number  BL15-3

    BL15-3

    BL15-3
    T-shape right angled drive, 12mm shafts, 2.3Nm-6Nm output torque, ratio 3:1. Spiral Bevels.
    Ondrives Precision Gears and Gearboxes Part number  BL15-4

    BL15-4

    BL15-4
    T-shape right angled drive, 12mm shafts, 2.2Nm-5.5Nm output torque, ratio 4:1. Spiral Bevels.
    Ondrives Precision Gears and Gearboxes Part number  BL15-XH-1

    BL15-XH-1

    BL15-XH-1
    T-shape right angled drive, 12mm shafts, 4Nm-10Nm output torque, ratio 1:1. Spiral Bevel Bevels.
