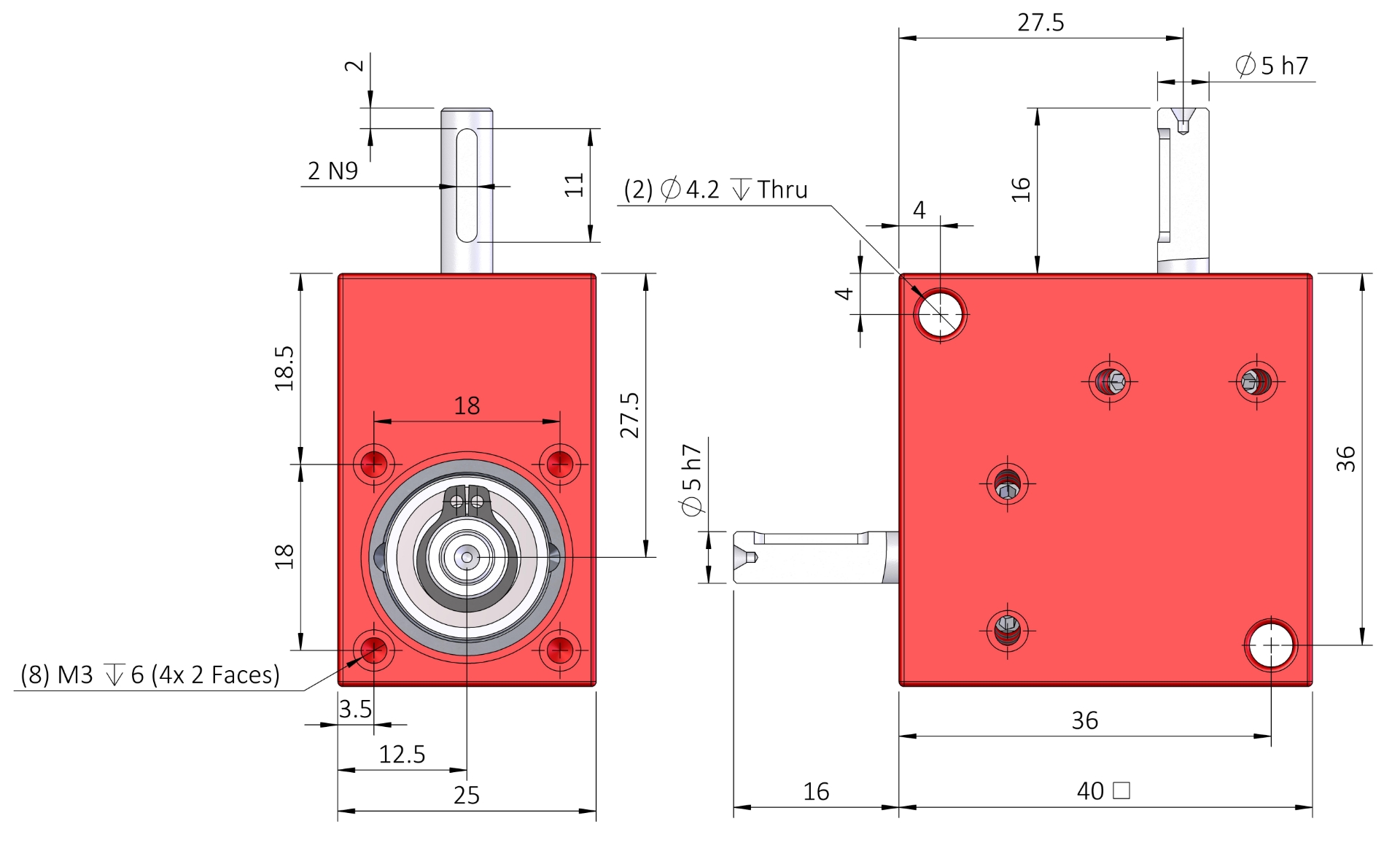

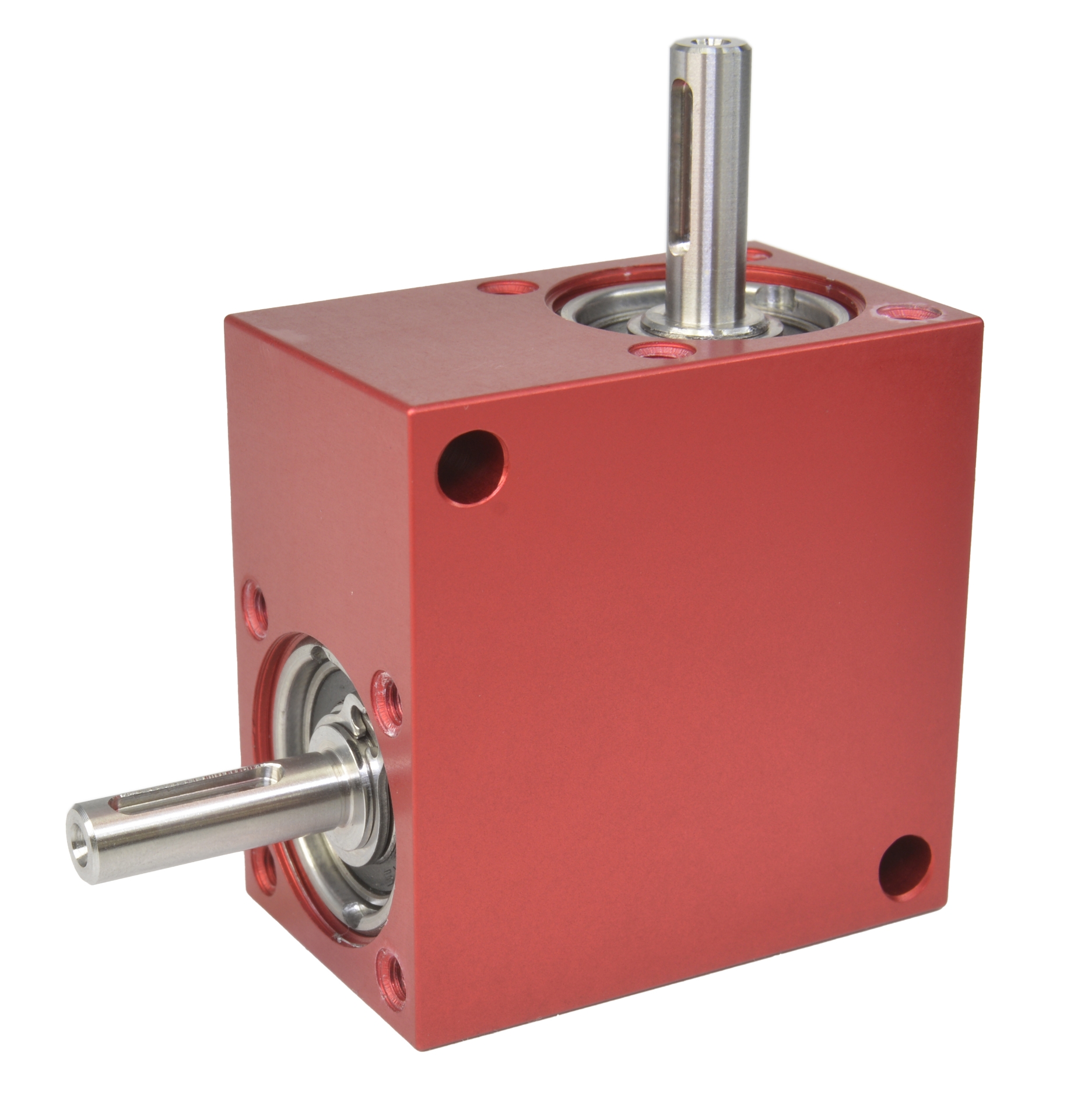

BLH20-BLHT20 1.77Nm Ø5-Shafts
Spiral Bevel Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Type | Gear Ratio [i=] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|
| BLH20-1 | 1 x Input 1 x Output | 1:1 | 0.88 | ≤0.75° |
| BLH20-2 | 1 x Input 1 x Output | 2:1 | 0.70 | ≤0.75° |
| BLHT20-1 | 1 x Input 2 x Output (Thru Shaft) | 1:1 | 0.88 | ≤0.75° |
| BLHT20-2 | 1 x Input 2 x Output (Thru Shaft) | 2:1 | 0.70 | ≤0.75° |
| BLH20-1A | 1 x Input 1 x Output | 1:1 | 0.88 | ≤0.5° |
| BLH20-2A | 1 x Input 1 x Output | 2:1 | 0.70 | ≤0.5° |
| BLH20-1AR | 1 x Input 1 x Output | 1:1 | 0.88 | ≤0.16° |
| BLH20-2AR | 1 x Input 1 x Output | 2:1 | 0.70 | ≤0.16° |
| BLHT20-2A | 1 x Input 2 x Output (Thru Shaft) | 2:1 | 0.70 | ≤0.5° |
| BLHT20-1A | 1 x Input 2 x Output (Thru Shaft) | 1:1 | 0.88 | ≤0.5° |
| BLHT20-1AR | 1 x Input 2 x Output (Thru Shaft) | 1:1 | 0.88 | ≤0.16° |
| BLHT20-2AR | 1 x Input 2 x Output (Thru Shaft) | 2:1 | 0.70 | ≤0.16° |
