  4. BLHM30 4.4Nm-Ø8-Shafts 3-Spiral-Bevels

BLHM30-1

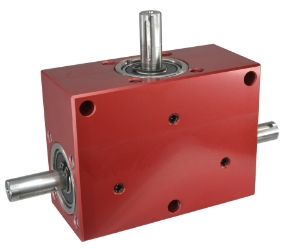

Spiral Bevel Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes

BLHM30-1

Spiral Bevel Gearbox 2 Output Shafts Counter Rotating, ≤45' backlash, 8mm shafts, 1.65Nm-4.40Nm output torque, ratio 1:1
Spiral Bevel Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Spiral Bevel Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Spiral Bevel Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Spiral Bevel Gearbox made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Spiral Bevel Gearbox made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]1:1
Output Torque T₂n [Nm]2.20
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]0.344
Max. Input Radial Load Fr1 N30
Max. Output Radial Load Fr2 N30
Max. Output Axial Load Fa2 N20
Lubrication GreaseShell Gadus S2 V220AD 2

Product specifications

Gear Ratio [i=]1:1
Output Torque T₂n [Nm]2.20
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]0.344
Max. Input Radial Load Fr1 N30
Max. Output Radial Load Fr2 N30
Max. Output Axial Load Fa2 N20
Lubrication GreaseShell Gadus S2 V220AD 2
