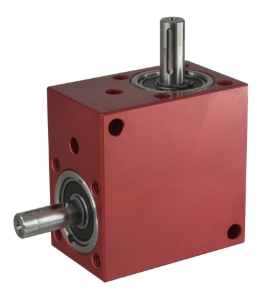

BLH30-2AR

Spiral Bevel Gearbox Right Angle Shaft Input 1 Shaft Output, ≤10' backlash, 8mm shafts, 1.32Nm-3.54Nm output torque, ratio 2:1

Product specifications

Gear Ratio [i=]	2:1
Output Torque T₂n [Nm]	1.76
Output Backlash j	≤0.16°
Efficiency n1 1000 r/min [ηz]	88%
Reflected Inertia at Input (kg•m²)	5.00 x 10-7
Mass [kg]	0.3
Max. Input Radial Load Fr1 N	30
Max. Output Radial Load Fr2 N	30
Max. Output Axial Load Fa2 N	20
Lubrication Grease	Shell Gadus S2 V220AD 2
