BLHT30-1A

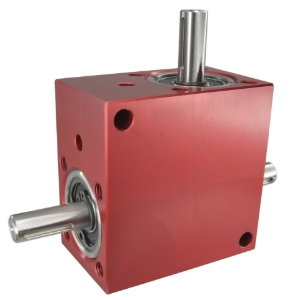

Spiral Bevel Gearbox Right Angle Shaft Input 2 Shaft Outputs, ≤30' backlash, 8mm shafts, 1.65Nm-4.40Nm output torque, ratio 1:1

Product specifications

Gear Ratio [i=]	1:1
Output Backlash j	≤0.5°
Efficiency n1 1000 r/min [ηz]	88%
Output Torque T₂n [Nm]	2.20
Reflected Inertia at Input (kg•m²)	2.19 x 10-6
Mass [kg]	0.3
Max. Input Radial Load Fr1 N	30
Max. Output Radial Load Fr2 N	30
Max. Output Axial Load Fa2 N	20
Lubrication Grease	Shell Gadus S2 V220AD 2

Gear Ratio [i=]	1:1
Output Backlash j	≤0.5°
Efficiency n1 1000 r/min [ηz]	88%
Output Torque T₂n [Nm]	2.20
Reflected Inertia at Input (kg•m²)	2.19 x 10-6
Mass [kg]	0.3
Max. Input Radial Load Fr1 N	30
Max. Output Radial Load Fr2 N	30
Max. Output Axial Load Fa2 N	20
Lubrication Grease	Shell Gadus S2 V220AD 2
