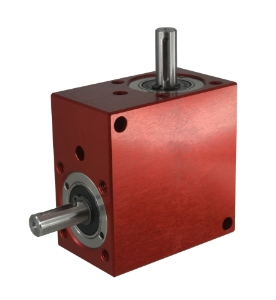

BLH40-1A

Spiral Bevel Gearbox Right Angle Shaft Input 1 Shaft Output, ≤30' backlash, 10mm shafts, 4.00Nm-10.30Nm output torque, ratio 1:1

Product specifications

Gear Ratio [i=]	1:1
Output Backlash j	≤0.5°
Output Torque T₂n [Nm]	5.10
Efficiency n1 1000 r/min [ηz]	88%
Reflected Inertia at Input (kg•m²)	6.43 x 10-6
Mass [kg]	0.9
Max. Input Radial Load Fr1 N	60
Max. Output Radial Load Fr2 N	60
Max. Output Axial Load Fa2 N	50
Lubrication Grease	Shell Gadus S2 V220AD 2

Gear Ratio [i=]	1:1
Output Backlash j	≤0.5°
Output Torque T₂n [Nm]	5.10
Efficiency n1 1000 r/min [ηz]	88%
Reflected Inertia at Input (kg•m²)	6.43 x 10-6
Mass [kg]	0.9
Max. Input Radial Load Fr1 N	60
Max. Output Radial Load Fr2 N	60
Max. Output Axial Load Fa2 N	50
Lubrication Grease	Shell Gadus S2 V220AD 2
