BLH50-2

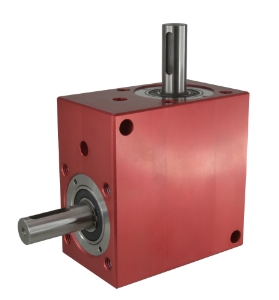

Spiral Bevel Gearbox Right Angle Shaft Input 1 Shaft Output, ≤45' backlash, 15mm shafts, 7.70Nm-20.00Nm output torque, ratio 2:1

Product specifications

Gear Ratio [i=]	2:1
Output Torque T₂n [Nm]	10.20
Output Backlash j	≤0.75°
Efficiency n1 1000 r/min [ηz]	88%
Reflected Inertia at Input (kg•m²)	1.25 x 10-5
Mass [kg]	2.2
Max. Input Radial Load Fr1 N	200
Max. Output Radial Load Fr2 N	200
Max. Output Axial Load Fa2 N	100
Lubrication Grease	Shell Gadus S2 V220AD 2
