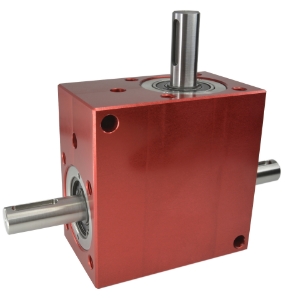

BLHT50-1A

Spiral Bevel Gearbox Right Angle Shaft Input 2 Shaft Outputs, ≤30' backlash, 15mm shafts, 11.50Nm-30.00Nm output torque, ratio 1:1

Product specifications

Gear Ratio [i=]	1:1
Output Backlash j	≤0.5°
Efficiency n1 1000 r/min [ηz]	88%
Output Torque T₂n [Nm]	15.90
Reflected Inertia at Input (kg•m²)	4.76 x 10-5
Mass [kg]	2.2
Max. Input Radial Load Fr1 N	200
Max. Output Radial Load Fr2 N	200
Max. Output Axial Load Fa2 N	100
Lubrication Grease	Shell Gadus S2 V220AD 2
