BLH70-2

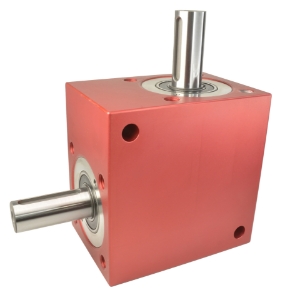

Spiral Bevel Gearbox Right Angle Shaft Input 1 Shaft Output, ≤45' backlash, 25mm shafts, 26Nm-77Nm output torque, ratio 2:1

Product specifications

Gear Ratio [i=]	2:1
Output Backlash j	≤0.75°
Output Torque T₂n [Nm]	34.00
Efficiency n1 1000 r/min [ηz]	88%
Reflected Inertia at Input (kg•m²)	4.15 x 10-4
Mass [kg]	7.05
Max. Input Radial Load Fr1 N	500
Max. Output Radial Load Fr2 N	500
Max. Output Axial Load Fa2 N	200
Lubrication Grease	Shell Gadus S2 V220AD 2
