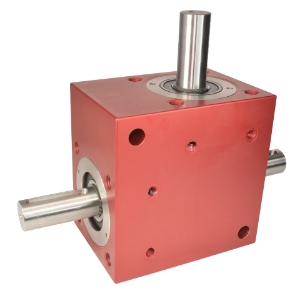

BLHT70-1A

Spiral Bevel Gearbox Right Angle Shaft Input 2 Shaft Outputs, ≤30' backlash, 25mm shafts, 43Nm-128Nm output torque, ratio 1:1

Product specifications

Gear Ratio [i=]	1:1
Output Torque T₂n [Nm]	51.00
Output Backlash j	≤0.5°
Efficiency n1 1000 r/min [ηz]	88%
Reflected Inertia at Input (kg•m²)	2.52x10-3
Mass [kg]	7.05
Max. Input Radial Load Fr1 N	500
Max. Output Radial Load Fr2 N	500
Max. Output Axial Load Fa2 N	200
Lubrication Grease	Shell Gadus S2 V220AD 2
