BLN20-6

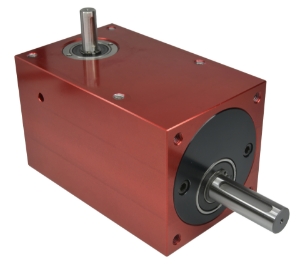

Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes

BLN20-6

High Ratio Spiral Bevel Gearbox, 6mm output shaft, 5mm input shaft, 1.6Nm-3.6Nm output torque, ratio 6:1
Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Gearbox shaft input and output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for gearbox made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for gearbox made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]6:1
Output Torque T₂n [Nm]2.03
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]0.5
Lubrication GreaseKLUBERSYNTH GE 46-1200

Product specifications

Gear Ratio [i=]6:1
Output Torque T₂n [Nm]2.03
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]88%
Mass [kg]0.5
Lubrication GreaseKLUBERSYNTH GE 46-1200
