BSPG2560SL

Ondrives Precision Gears and Gearboxes Part number BSPG2560SL

BSPG2560SL

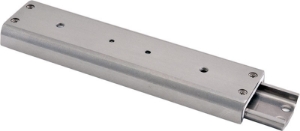

Stainless Steel Precision Linear Slide Unit, Non-Recirculating Ball Type, Built in Rack and Pinion
Ondrives Precision Gears and Gearboxes Part number BSPG2560SL Ondrives Precision Gears and Gearboxes Part number BSPG2560SL Ondrives Precision Gears and Gearboxes Part number BSPG2560SL

Product specifications

Mass (g)48.3
Dimension [W]25
Dimension [k] [H]10
Dimension [L]60
Max. Stroke32
Dimension [L1]40
Thread [M1]M3
Dimension [S1]3.5
Dimension [h1]9
Dimension [t1]1.6
Dimension [Lb]56
Dimension [w]18.4
Dimension [b]40
Thread [M2]M3
Dimension [S2]3
Dimension [h2]5.7
Dimension [t2]1.6
Basic Dynamic Load Rating [N]998
Basic Static Load Rating [N]606

Product specifications

Mass (g)48.3
Dimension [W]25
Dimension [k] [H]10
Dimension [L]60
Max. Stroke32
Dimension [L1]40
Thread [M1]M3
Dimension [S1]3.5
Dimension [h1]9
Dimension [t1]1.6
Dimension [Lb]56
Dimension [w]18.4
Dimension [b]40
Thread [M2]M3
Dimension [S2]3
Dimension [h2]5.7
Dimension [t2]1.6
Basic Dynamic Load Rating [N]998
Basic Static Load Rating [N]606
