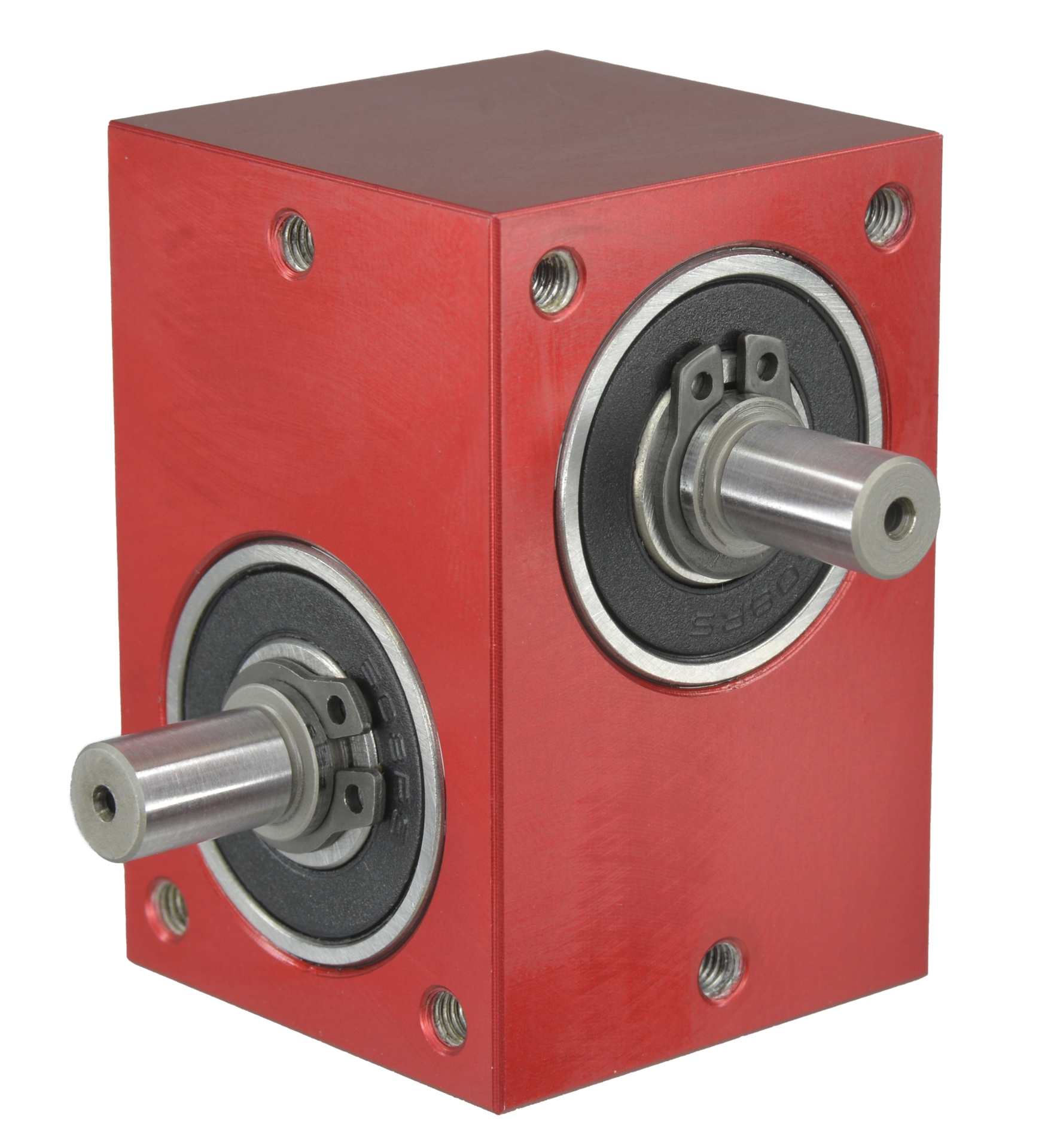

    E15 15mm Centres 2.5Nm RH

    Ondrives crossed axis helical gearboxes offer an excellent solution where a 90 degree drive is required.

    Crossed Helical Rotation Direction.
    Using different helix direction changes direction of rotation compared to input compared to the other helix direction.

    Helix Direction RH-Right Hand - When input rotation is clockwise , output is pulled towards input. When input is counter-clockwise , output is pushed away from input.
    Helix Direction LH-Left Hand    - When input rotation is clockwise , output is pushed away from input. When input is counter-clockwise , output is pulled towards input.

    View as Grid List
    Sort by
    Display per page
    Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes

    E15-10A

    E15-10A
    Right angle crossed axis helical gearbox reducer, ≤30' backlash, 6mm shafts, 0.79Nm-2.44Nm output torque, ratio 10:1
    Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes

    E15-10AR

    E15-10AR
    Right angle crossed axis helical gearbox reducer, ≤10' backlash, 6mm shafts, 0.79Nm-2.44Nm output torque, ratio 10:1
    Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes

    E15-1A

    E15-1A
    Right angle crossed axis helical gearbox reducer, ≤30' backlash, 6mm shafts, 0.40Nm-1.32Nm output torque, ratio 1:1
    Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes

    E15-1AR

    E15-1AR
    Right angle crossed axis helical gearbox reducer, ≤10' backlash, 6mm shafts, 0.40Nm-1.32Nm output torque, ratio 1:1
    Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes

    E15-20A

    E15-20A
    Right angle crossed axis helical gearbox reducer, ≤30' backlash, 6mm shafts, 0.90Nm-2.51Nm output torque, ratio 20:1
    Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes

    E15-20AR

    E15-20AR
    Right angle crossed axis helical gearbox reducer, ≤10' backlash, 6mm shafts, 0.90Nm-2.51Nm output torque, ratio 20:1

    E15 15mm Centres 2.5Nm RH
