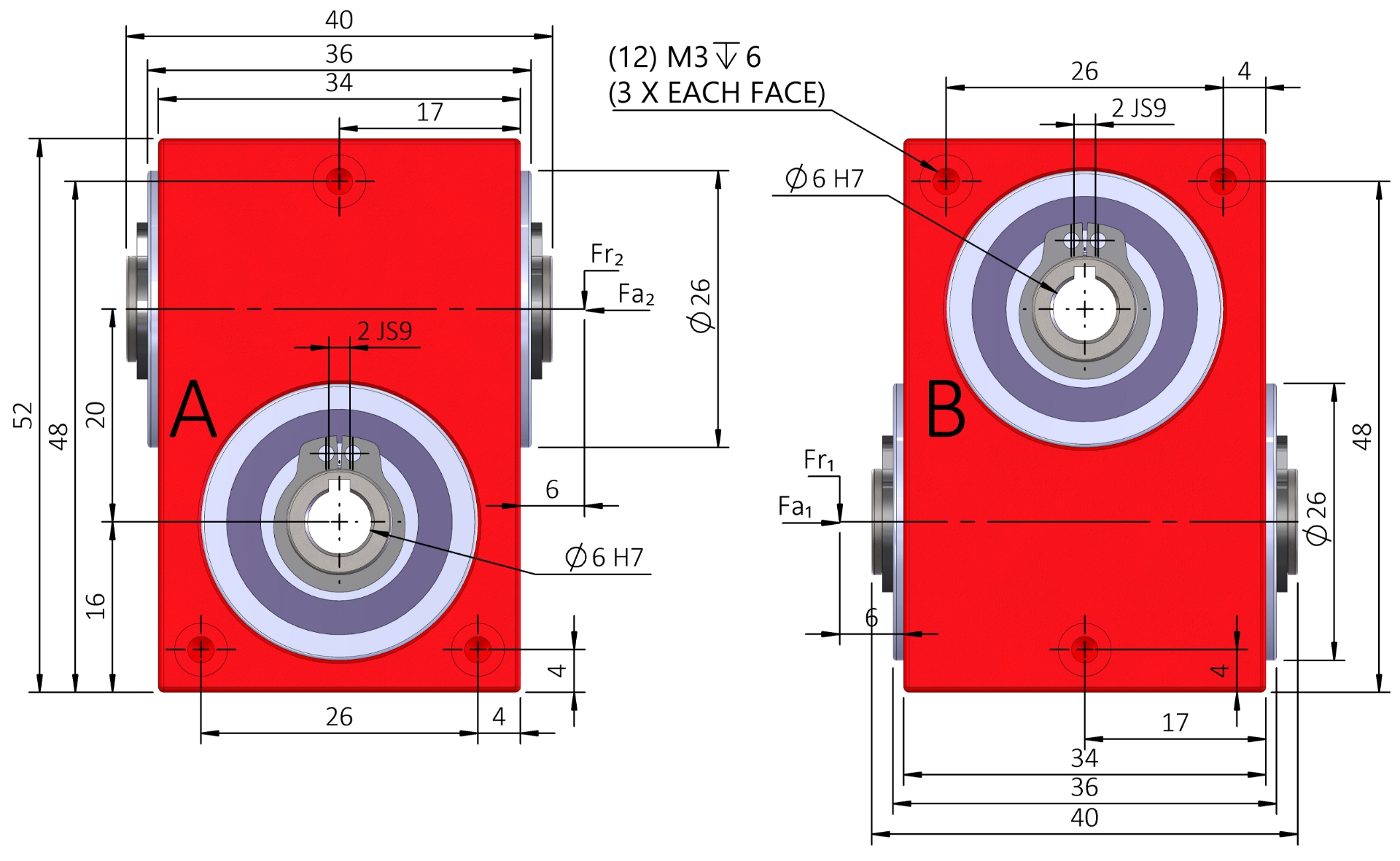

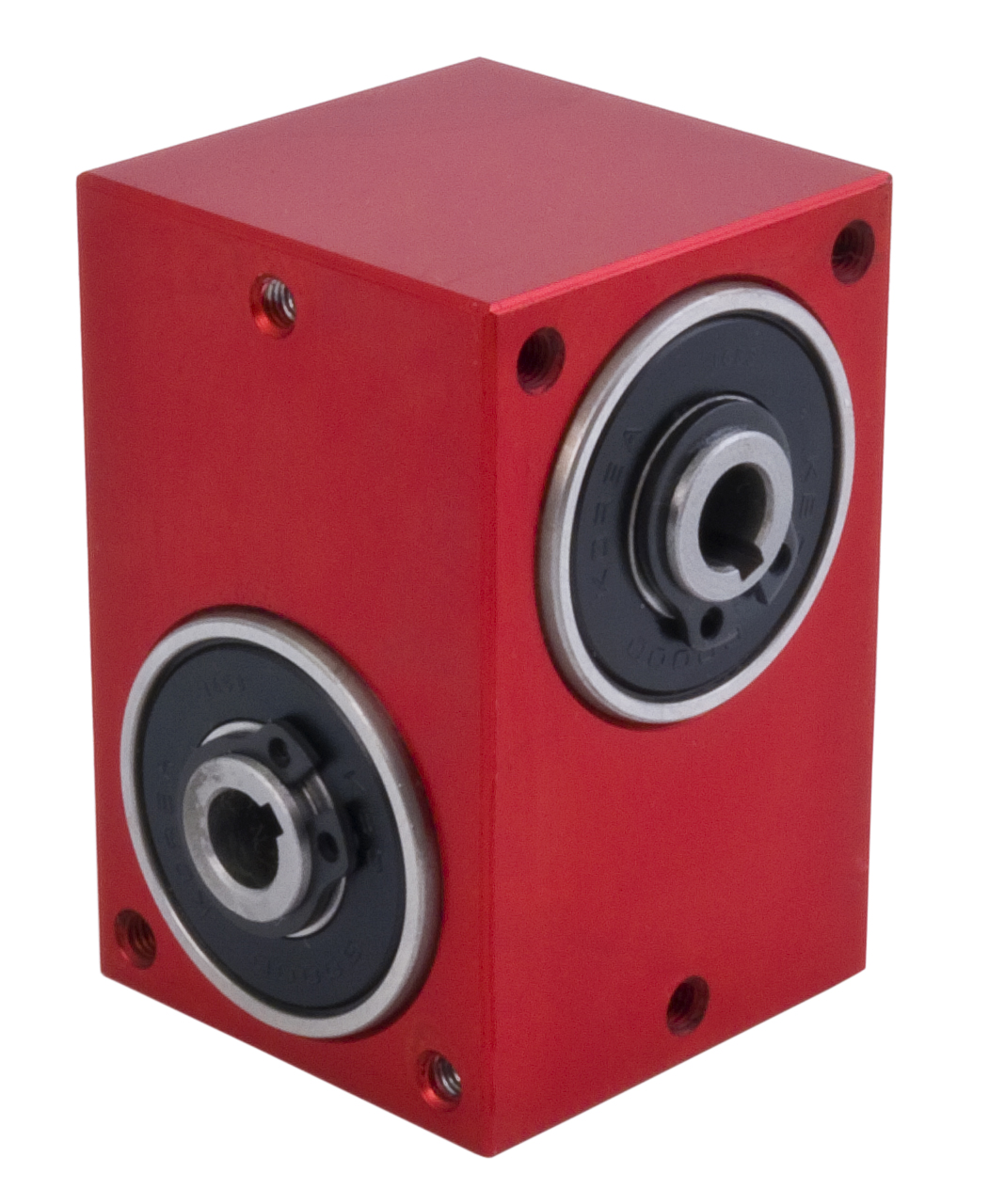

E20-LH 3.9Nm 20mm-Centres
Crossed Axis Helical Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Helix Direction | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|---|
| E20-10A-LH | 10:1 | Left Hand | 20.00 | 4 | 1.47 | ≤0.5° |
| E20-10AR-LH | 10:1 | Left Hand | 20.00 | 4 | 1.47 | ≤0.16° |
| E20-1A-LH | 1:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.5° |
| E20-1AR-LH | 1:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.16° |
| E20-20A-LH | 20:1 | Left Hand | 20.00 | 4 | 1.63 | ≤0.5° |
| E20-20AR-LH | 20:1 | Left Hand | 20.00 | 4 | 1.63 | ≤0.16° |
| E20-2A-LH | 2:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.5° |
| E20-2AR-LH | 2:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.16° |
| E20-3A-LH | 3:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.5° |
| E20-3AR-LH | 3:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.16° |
| E20-40A-LH | 40:1 | Left Hand | 20.00 | 4 | 1.80 | ≤0.5° |
| E20-40AR-LH | 40:1 | Left Hand | 20.00 | 4 | 1.80 | ≤0.16° |
| E20-4A-LH | 4:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.5° |
| E20-4AR-LH | 4:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.16° |
| E20-5A-LH | 5:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.5° |
| E20-5AR-LH | 5:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.16° |
| E20-8A-LH | 8:1 | Left Hand | 20.00 | 4 | 1.31 | ≤0.5° |
| E20-8AR-LH | 8:1 | Left Hand | 20.00 | 4 | 1.31 | ≤0.16° |
| E20-1-LH | 1:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.75° |
| E20-2-LH | 2:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.75° |
| E20-3-LH | 3:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.75° |
| E20-4-LH | 4:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.75° |
| E20-5-LH | 5:1 | Left Hand | 20.00 | 2 | 1.00 | ≤0.75° |
| E20-8-LH | 8:1 | Left Hand | 20.00 | 4 | 1.31 | ≤0.75° |
| E20-10-LH | 10:1 | Left Hand | 20.00 | 4 | 1.47 | ≤0.75° |
| E20-20-LH | 20:1 | Left Hand | 20.00 | 4 | 1.63 | ≤0.75° |
| E20-40-LH | 40:1 | Left Hand | 20.00 | 4 | 1.80 | ≤0.75° |
