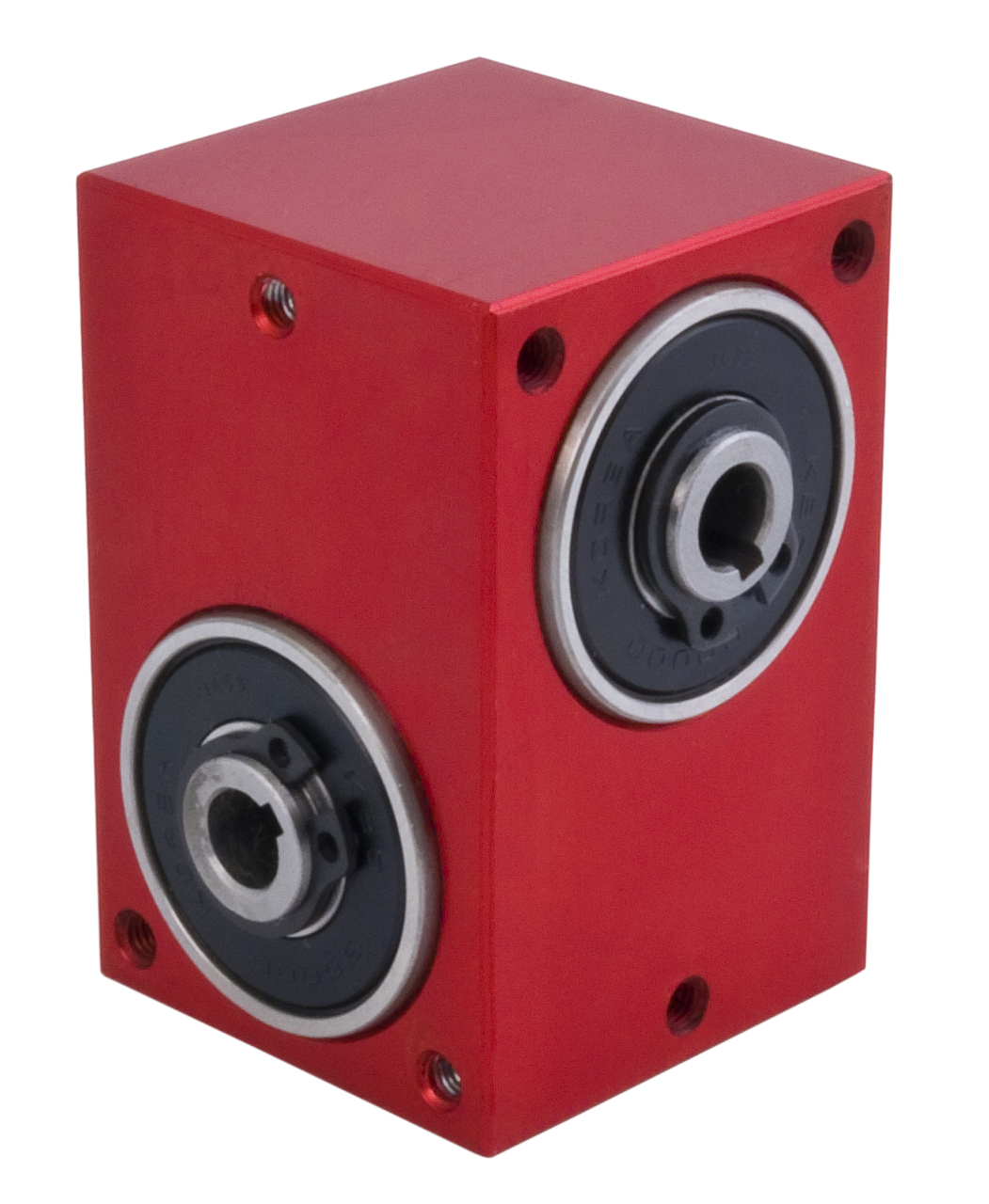

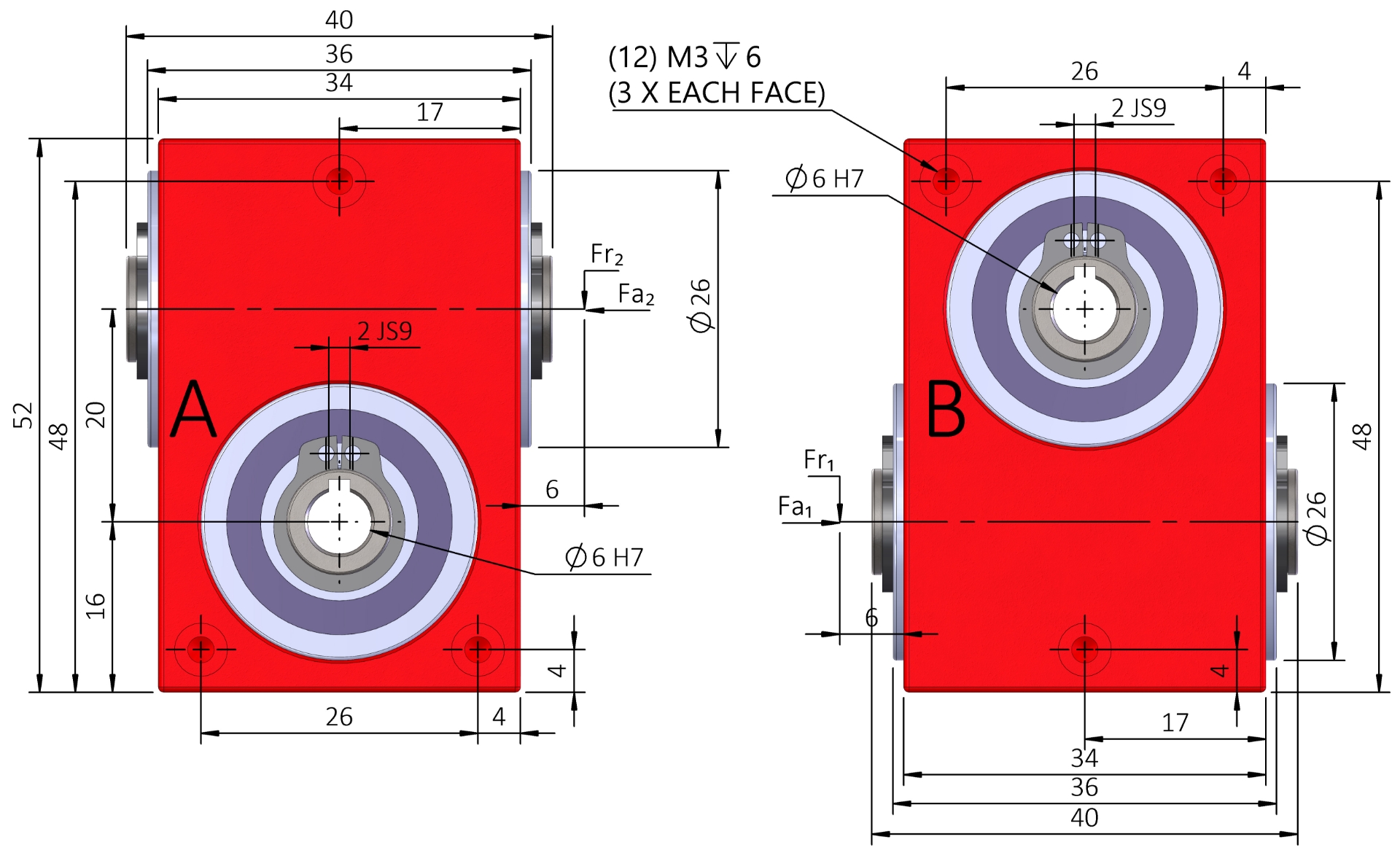

E20-RH 3.9Nm 20mm-Centres
Crossed Axis Helical Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Helix Direction | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|---|---|
| E20-1 | 1:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.75° |
| E20-2 | 2:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.75° |
| E20-3 | 3:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.75° |
| E20-4 | 4:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.75° |
| E20-5 | 5:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.75° |
| E20-8 | 8:1 | Right Hand | 20.00 | 4 | 1.31 | ≤0.75° |
| E20-10 | 10:1 | Right Hand | 20.00 | 4 | 1.47 | ≤0.75° |
| E20-20 | 20:1 | Right Hand | 20.00 | 4 | 1.63 | ≤0.75° |
| E20-40 | 40:1 | Right Hand | 20.00 | 4 | 1.80 | ≤0.75° |
| E20-1A | 1:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.5° |
| E20-2A | 2:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.5° |
| E20-3A | 3:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.5° |
| E20-4A | 4:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.5° |
| E20-5A | 5:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.5° |
| E20-8A | 8:1 | Right Hand | 20.00 | 4 | 1.31 | ≤0.5° |
| E20-10A | 10:1 | Right Hand | 20.00 | 4 | 1.47 | ≤0.5° |
| E20-20A | 20:1 | Right Hand | 20.00 | 4 | 1.63 | ≤0.5° |
| E20-40A | 40:1 | Right Hand | 20.00 | 4 | 1.80 | ≤0.5° |
| E20-10AR | 10:1 | Right Hand | 20.00 | 4 | 1.47 | ≤0.16° |
| E20-1AR | 1:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.16° |
| E20-20AR | 20:1 | Right Hand | 20.00 | 4 | 1.63 | ≤0.16° |
| E20-2AR | 2:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.16° |
| E20-3AR | 3:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.16° |
| E20-40AR | 40:1 | Right Hand | 20.00 | 4 | 1.80 | ≤0.16° |
| E20-4AR | 4:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.16° |
| E20-5AR | 5:1 | Right Hand | 20.00 | 2 | 1.00 | ≤0.16° |
| E20-8AR | 8:1 | Right Hand | 20.00 | 4 | 1.31 | ≤0.16° |
