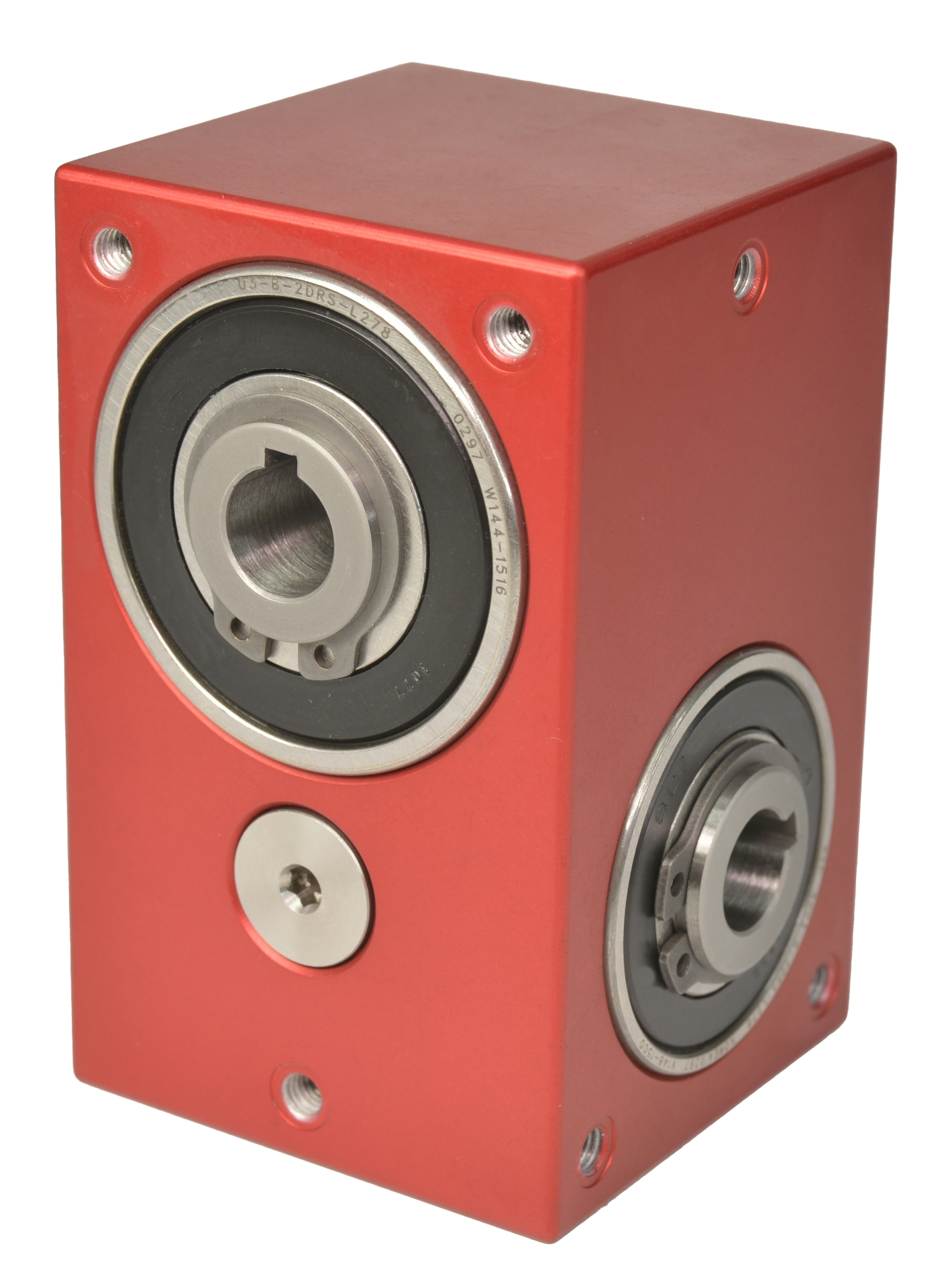

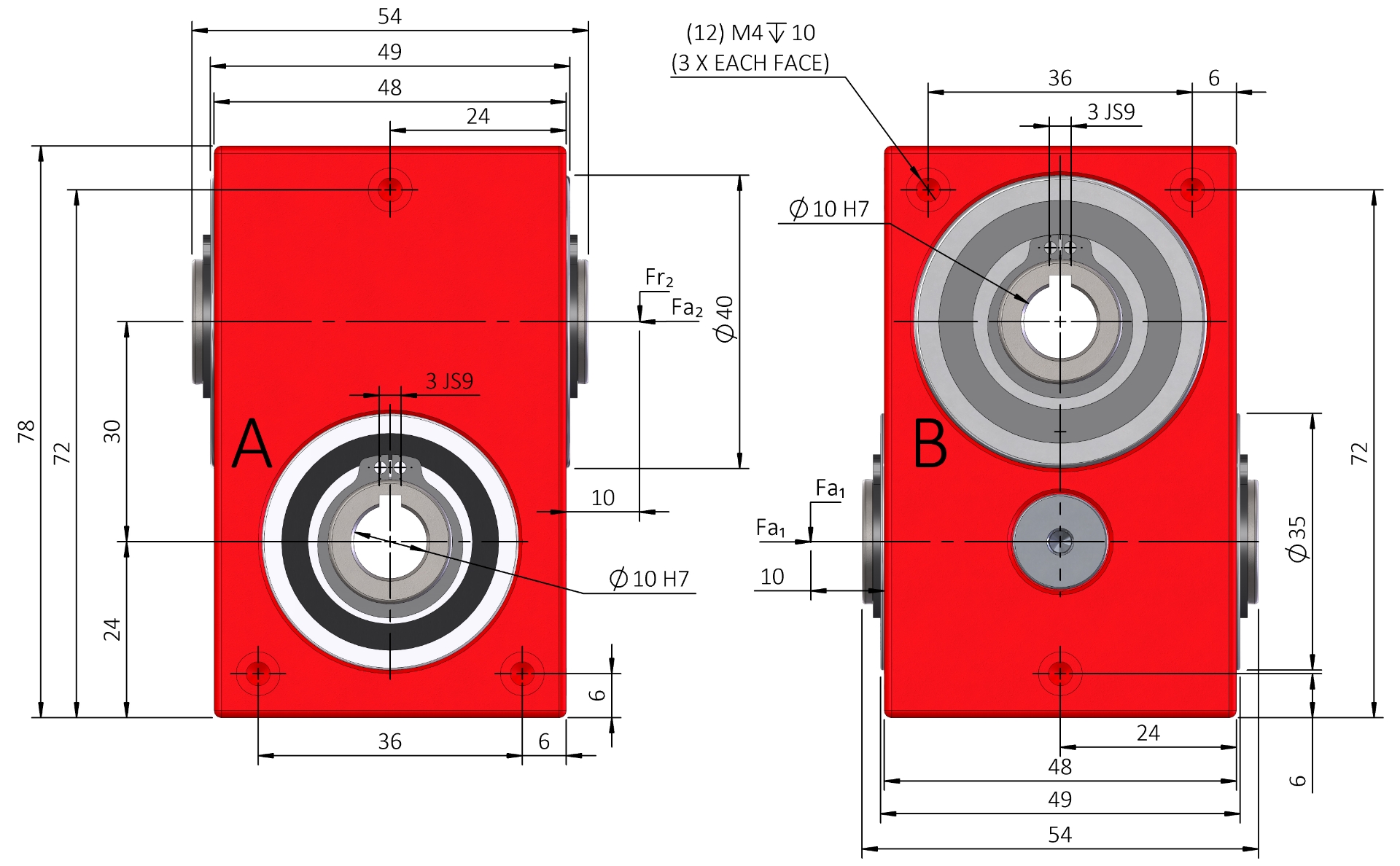

E30-LH 9Nm 30mm-Centres
Crossed Axis Helical Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Gear Ratio [i=] | Helix Direction | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j | Bore Diameter mm Ø H7 |
|---|---|---|---|---|---|---|---|
| E30-1-8-LH | 1:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 8 |
| E30-1-9-LH | 1:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 9 |
| E30-1A-LH | 1:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 10 |
| E30-1A-8-LH | 1:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 8 |
| E30-1A-9-LH | 1:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 9 |
| E30-1AR-LH | 1:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 10 |
| E30-1AR-8-LH | 1:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 8 |
| E30-1AR-9-LH | 1:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 9 |
| E30-2AR-9-LH | 2:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 9 |
| E30-2AR-8-LH | 2:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 8 |
| E30-2AR-LH | 2:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 10 |
| E30-2A-9-LH | 2:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 9 |
| E30-2A-8-LH | 2:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 8 |
| E30-2A-LH | 2:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 10 |
| E30-2-9-LH | 2:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 9 |
| E30-2-8-LH | 2:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 8 |
| E30-3AR-9-LH | 3:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 9 |
| E30-3AR-8-LH | 3:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 8 |
| E30-3AR-LH | 3:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 10 |
| E30-3A-9-LH | 3:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 9 |
| E30-3A-8-LH | 3:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 8 |
| E30-3A-LH | 3:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 10 |
| E30-3-9-LH | 3:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 9 |
| E30-3-8-LH | 3:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 8 |
| E30-4AR-9-LH | 4:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 9 |
| E30-4AR-8-LH | 4:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 8 |
| E30-4AR-LH | 4:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 10 |
| E30-4A-9-LH | 4:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 9 |
| E30-4A-8-LH | 4:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 8 |
| E30-4A-LH | 4:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 10 |
| E30-4-9-LH | 4:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 9 |
| E30-4-8-LH | 4:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 8 |
| E30-5AR-9-LH | 5:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 9 |
| E30-5AR-8-LH | 5:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 8 |
| E30-5AR-LH | 5:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.16° | 10 |
| E30-5A-9-LH | 5:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 9 |
| E30-5A-8-LH | 5:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 8 |
| E30-5A-LH | 5:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.5° | 10 |
| E30-5-9-LH | 5:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 9 |
| E30-5-8-LH | 5:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 8 |
| E30-8AR-9-LH | 8:1 | Left Hand | 30.00 | 9 | 3.60 | ≤0.16° | 9 |
| E30-8AR-8-LH | 8:1 | Left Hand | 30.00 | 9 | 3.60 | ≤0.16° | 8 |
| E30-8AR-LH | 8:1 | Left Hand | 30.00 | 9 | 3.60 | ≤0.16° | 10 |
| E30-8A-9-LH | 8:1 | Left Hand | 30.00 | 9 | 3.60 | ≤0.5° | 9 |
| E30-8A-8-LH | 8:1 | Left Hand | 30.00 | 9 | 3.60 | ≤0.5° | 8 |
| E30-8A-LH | 8:1 | Left Hand | 30.00 | 9 | 3.60 | ≤0.5° | 10 |
| E30-8-9-LH | 8:1 | Left Hand | 30.00 | 9 | 3.60 | ≤0.75° | 9 |
| E30-8-8-LH | 8:1 | Left Hand | 30.00 | 9 | 3.60 | ≤0.75° | 8 |
| E30-10AR-9-LH | 10:1 | Left Hand | 30.00 | 9 | 4.20 | ≤0.16° | 9 |
| E30-10-8-LH | 10:1 | Left Hand | 30.00 | 9 | 4.20 | ≤0.75° | 8 |
| E30-10-9-LH | 10:1 | Left Hand | 30.00 | 9 | 4.20 | ≤0.75° | 9 |
| E30-10A-LH | 10:1 | Left Hand | 30.00 | 9 | 4.20 | ≤0.5° | 10 |
| E30-10A-8-LH | 10:1 | Left Hand | 30.00 | 9 | 4.20 | ≤0.5° | 8 |
| E30-10A-9-LH | 10:1 | Left Hand | 30.00 | 9 | 4.20 | ≤0.5° | 9 |
| E30-10AR-LH | 10:1 | Left Hand | 30.00 | 9 | 4.20 | ≤0.16° | 10 |
| E30-10AR-8-LH | 10:1 | Left Hand | 30.00 | 9 | 4.20 | ≤0.16° | 8 |
| E30-20-8-LH | 20:1 | Left Hand | 30.00 | 9 | 4.70 | ≤0.75° | 8 |
| E30-20-9-LH | 20:1 | Left Hand | 30.00 | 9 | 4.70 | ≤0.75° | 9 |
| E30-20A-LH | 20:1 | Left Hand | 30.00 | 9 | 4.70 | ≤0.5° | 10 |
| E30-20A-8-LH | 20:1 | Left Hand | 30.00 | 9 | 4.70 | ≤0.5° | 8 |
| E30-20A-9-LH | 20:1 | Left Hand | 30.00 | 9 | 4.70 | ≤0.5° | 9 |
| E30-20AR-LH | 20:1 | Left Hand | 30.00 | 9 | 4.70 | ≤0.16° | 10 |
| E30-20AR-8-LH | 20:1 | Left Hand | 30.00 | 9 | 4.70 | ≤0.16° | 8 |
| E30-20AR-9-LH | 20:1 | Left Hand | 30.00 | 9 | 4.70 | ≤0.16° | 9 |
| E30-40-8-LH | 40:1 | Left Hand | 30.00 | 9 | 5.00 | ≤0.75° | 8 |
| E30-40-9-LH | 40:1 | Left Hand | 30.00 | 9 | 5.00 | ≤0.75° | 9 |
| E30-40A-LH | 40:1 | Left Hand | 30.00 | 9 | 5.00 | ≤0.5° | 10 |
| E30-40A-8-LH | 40:1 | Left Hand | 30.00 | 9 | 5.00 | ≤0.5° | 8 |
| E30-40A-9-LH | 40:1 | Left Hand | 30.00 | 9 | 5.00 | ≤0.5° | 9 |
| E30-40AR-LH | 40:1 | Left Hand | 30.00 | 9 | 5.00 | ≤0.16° | 10 |
| E30-40AR-8-LH | 40:1 | Left Hand | 30.00 | 9 | 5.00 | ≤0.16° | 8 |
| E30-40AR-9-LH | 40:1 | Left Hand | 30.00 | 9 | 5.00 | ≤0.16° | 9 |
| E30-1-LH | 1:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 10 |
| E30-10-LH | 10:1 | Left Hand | 30.00 | 9 | 4.20 | ≤0.75° | 10 |
| E30-2-LH | 2:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 10 |
| E30-20-LH | 20:1 | Left Hand | 30.00 | 9 | 4.70 | ≤0.75° | 10 |
| E30-3-LH | 3:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 10 |
| E30-4-LH | 4:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 10 |
| E30-40-LH | 40:1 | Left Hand | 30.00 | 9 | 5.00 | ≤0.75° | 10 |
| E30-5-LH | 5:1 | Left Hand | 30.00 | 5 | 2.50 | ≤0.75° | 10 |
| E30-8-LH | 8:1 | Left Hand | 30.00 | 9 | 3.60 | ≤0.75° | 10 |
