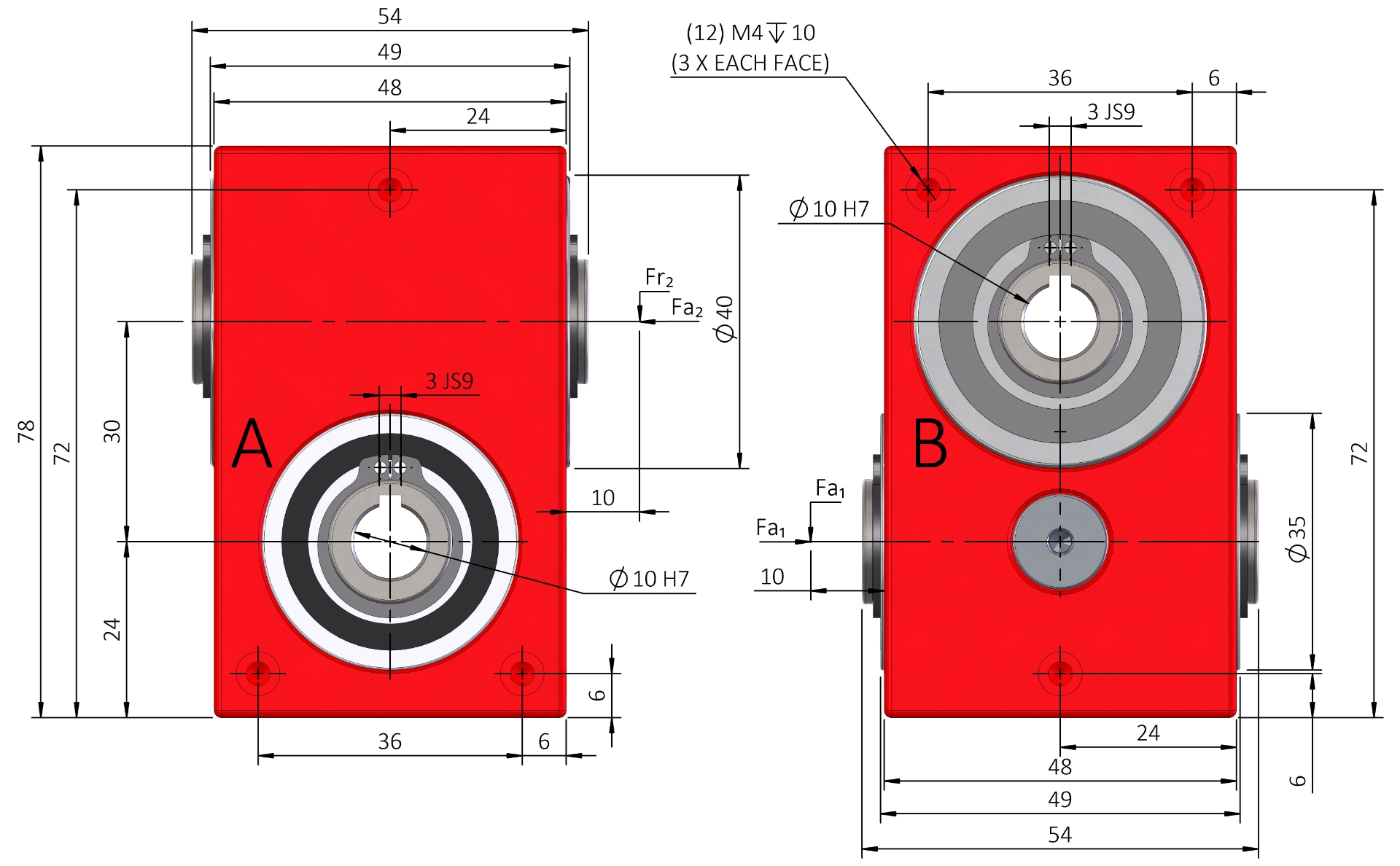

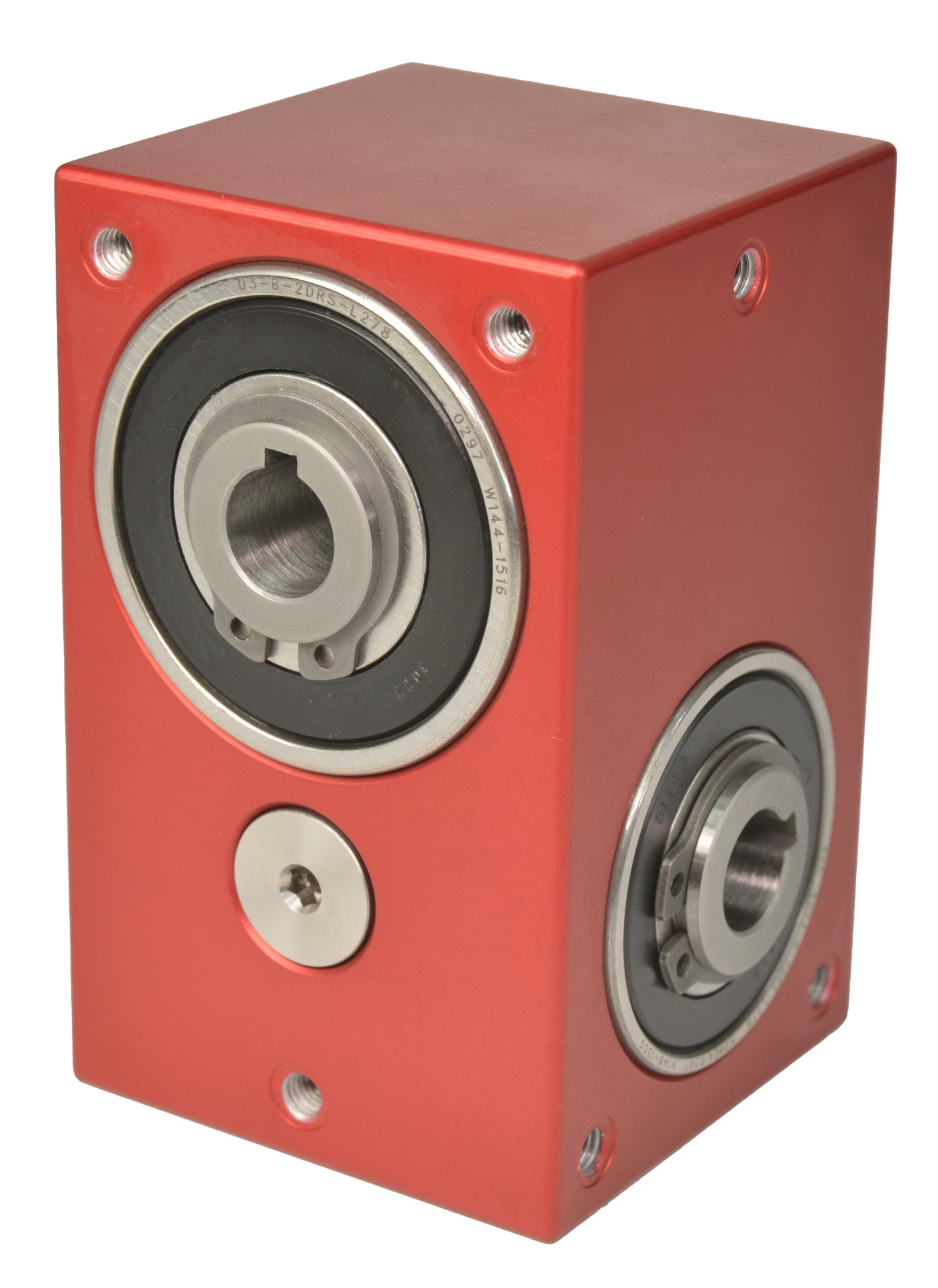

E30-RH 9Nm 30mm-Centres
Crossed Axis Helical Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK
Designed and Manufactured by Ondrives at our factory in the UK
| Sku (Part No.) | Gear Ratio [i=] | Helix Direction | Centre Dist. [a] | Output Torque T₂max [Nm] | Output Torque T₂n [Nm] | Output Backlash j | Bore Diameter mm Ø H7 |
|---|---|---|---|---|---|---|---|
| E30-1 | 1:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 10 |
| E30-2 | 2:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 10 |
| E30-3 | 3:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 10 |
| E30-4 | 4:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 10 |
| E30-5 | 5:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 10 |
| E30-8 | 8:1 | Right Hand | 30.00 | 9 | 3.60 | ≤0.75° | 10 |
| E30-10 | 10:1 | Right Hand | 30.00 | 9 | 4.20 | ≤0.75° | 10 |
| E30-20 | 20:1 | Right Hand | 30.00 | 9 | 4.70 | ≤0.75° | 10 |
| E30-40 | 40:1 | Right Hand | 30.00 | 9 | 5.00 | ≤0.75° | 10 |
| E30-1-9 | 1:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 9 |
| E30-2-9 | 2:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 9 |
| E30-3-9 | 3:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 9 |
| E30-4-9 | 4:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 9 |
| E30-5-9 | 5:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 9 |
| E30-8-9 | 8:1 | Right Hand | 30.00 | 9 | 3.60 | ≤0.75° | 9 |
| E30-10-9 | 10:1 | Right Hand | 30.00 | 9 | 4.20 | ≤0.75° | 9 |
| E30-20-9 | 20:1 | Right Hand | 30.00 | 9 | 4.70 | ≤0.75° | 9 |
| E30-40-9 | 40:1 | Right Hand | 30.00 | 9 | 5.00 | ≤0.75° | 9 |
| E30-1-8 | 1:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 8 |
| E30-2-8 | 2:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 8 |
| E30-3-8 | 3:1 | Right Hand | 30.00 | 5 | N/A | ≤0.75° | 8 |
| E30-4-8 | 4:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 8 |
| E30-5-8 | 5:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.75° | 8 |
| E30-8-8 | 8:1 | Right Hand | 30.00 | 9 | 3.60 | ≤0.75° | 8 |
| E30-10-8 | 10:1 | Right Hand | 30.00 | 9 | 4.20 | ≤0.75° | 8 |
| E30-20-8 | 20:1 | Right Hand | 30.00 | 9 | 4.70 | ≤0.75° | 8 |
| E30-40-8 | 40:1 | Right Hand | 30.00 | 9 | 5.00 | ≤0.75° | 8 |
| E30-1A | 1:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 10 |
| E30-2A | 2:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 10 |
| E30-3A | 3:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 10 |
| E30-4A | 4:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 10 |
| E30-5A | 5:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 10 |
| E30-8A | 8:1 | Right Hand | 30.00 | 9 | 3.60 | ≤0.5° | 10 |
| E30-10A | 10:1 | Right Hand | 30.00 | 9 | 4.20 | ≤0.5° | 10 |
| E30-20A | 20:1 | Right Hand | 30.00 | 9 | 4.70 | ≤0.5° | 10 |
| E30-40A | 40:1 | Right Hand | 30.00 | 9 | 5.00 | ≤0.5° | 10 |
| E30-1A-8 | 1:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 8 |
| E30-2A-8 | 2:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 8 |
| E30-3A-8 | 3:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 8 |
| E30-4A-8 | 4:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 8 |
| E30-5A-8 | 5:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 8 |
| E30-8A-8 | 8:1 | Right Hand | 30.00 | 9 | 3.60 | ≤0.5° | 8 |
| E30-10A-8 | 10:1 | Right Hand | 30.00 | 9 | 4.20 | ≤0.5° | 8 |
| E30-20A-8 | 20:1 | Right Hand | 30.00 | 9 | 4.70 | ≤0.5° | 8 |
| E30-40A-8 | 40:1 | Right Hand | 30.00 | 9 | 5.00 | ≤0.5° | 8 |
| E30-1A-9 | 1:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 9 |
| E30-2A-9 | 2:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 9 |
| E30-3A-9 | 3:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 9 |
| E30-4A-9 | 4:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 9 |
| E30-5A-9 | 5:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.5° | 9 |
| E30-8A-9 | 8:1 | Right Hand | 30.00 | 9 | 3.60 | ≤0.5° | 9 |
| E30-10A-9 | 10:1 | Right Hand | 30.00 | 9 | 4.20 | ≤0.5° | 9 |
| E30-20A-9 | 20:1 | Right Hand | 30.00 | 9 | 4.70 | ≤0.5° | 9 |
| E30-40A-9 | 40:1 | Right Hand | 30.00 | 9 | 5.00 | ≤0.5° | 9 |
| E30-1AR | 1:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 10 |
| E30-1AR-8 | 1:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 8 |
| E30-1AR-9 | 1:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 9 |
| E30-2AR | 2:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 10 |
| E30-2AR-8 | 2:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 8 |
| E30-2AR-9 | 2:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 9 |
| E30-3AR | 3:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 10 |
| E30-3AR-8 | 3:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 8 |
| E30-3AR-9 | 3:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 9 |
| E30-4AR-8 | 4:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 8 |
| E30-4AR-9 | 4:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 9 |
| E30-5AR | 5:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 10 |
| E30-5AR-8 | 5:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 8 |
| E30-5AR-9 | 5:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 9 |
| E30-8AR | 8:1 | Right Hand | 30.00 | 9 | 3.60 | ≤0.16° | 10 |
| E30-8AR-8 | 8:1 | Right Hand | 30.00 | 9 | 3.60 | ≤0.16° | 8 |
| E30-8AR-9 | 8:1 | Right Hand | 30.00 | 9 | 3.60 | ≤0.16° | 9 |
| E30-10AR | 10:1 | Right Hand | 30.00 | 9 | 4.20 | ≤0.16° | 10 |
| E30-10AR-8 | 10:1 | Right Hand | 30.00 | 9 | 4.20 | ≤0.16° | 8 |
| E30-10AR-9 | 10:1 | Right Hand | 30.00 | 9 | 4.20 | ≤0.16° | 9 |
| E30-20AR | 20:1 | Right Hand | 30.00 | 9 | 4.70 | ≤0.16° | 10 |
| E30-20AR-8 | 20:1 | Right Hand | 30.00 | 9 | 4.70 | ≤0.16° | 8 |
| E30-20AR-9 | 20:1 | Right Hand | 30.00 | 9 | 4.70 | ≤0.16° | 9 |
| E30-40AR | 40:1 | Right Hand | 30.00 | 9 | 5.00 | ≤0.16° | 10 |
| E30-40AR-8 | 40:1 | Right Hand | 30.00 | 9 | 5.00 | ≤0.16° | 8 |
| E30-40AR-9 | 40:1 | Right Hand | 30.00 | 9 | 5.00 | ≤0.16° | 9 |
| E30-4AR | 4:1 | Right Hand | 30.00 | 5 | 2.50 | ≤0.16° | 10 |
